4-36 mm
Diameter Classes
Micro BLDC motor engineering and production
Precision Micro BLDC Motors for Mission-Critical Applications
Custom micro brushless DC motor assemblies for medical devices, UAV systems, robotics, appliances, and precision instruments, reviewed around size, speed, load, noise, lifetime, control, and evidence requests.
Micro Motor Manufacturing
Compact BLDC winding, assembly, balancing, and export-ready production.
Low Noise Tuning
Bearing, rotor, winding, and load-condition review for quieter devices.
Life Test Support
Speed, load, current, temperature, and endurance checks for production release.
Built for RFQ Review Across Compact Device Segments
PORTABLE MEDICAL DEVICES
MICRO UAV SYSTEMS
COMPACT ROBOTICS
HIGH-END APPLIANCES
PRECISION INSTRUMENTS
Capability Snapshot
What Buyers Check First
A quick view of the size range, validation planning, and supply path that shape early sourcing decisions.
Test Plan
Noise, Life, Load
Sample to Lot
Prototype, Pilot, Batch
Buyer Decision Points
Specify the motor around the device, not a generic catalog line
Overseas engineering and sourcing teams usually need the same answers first: what size range is feasible, which interfaces can change, how quality is checked, and what must be fixed before samples move into a pilot lot.
4 mm to 36 mm diameter classes
3 V, 5 V, 6 V, 12 V, 24 V, or custom winding
RPM, KV, torque, current, and thermal limits
Sensorless, Hall, encoder, or driver-integrated control
Shaft, flange, bearing, cable, connector, and harness details
dBA distance, duty cycle, life target, and acceptance criteria
Motor platform fit
Product capability
Micro BLDC and micro brushless DC motors are selected around the real envelope, load, speed, and thermal limits of the device.
- Coreless, slotless, sensorless, Hall, encoder, gear, and driver-integrated options
- Low-speed control, high-speed impeller output, compact pump, fan, and actuator needs
Interface control
Customization range
Engineering changes focus on the parts that determine fit, control behavior, assembly work, and repeat production consistency.
- Winding, magnet, bearing, rotor balancing, shaft, flange, mounting, and cable options
- Connector, pinout, harness length, feedback signal, labeling, and packaging review
Validation evidence
Quality controls
Performance claims are handled as testable requirements with stated load, fixture, distance, duty cycle, and acceptance criteria.
- No-load/load current, speed, torque, temperature rise, noise, vibration, and final checks
- Batch records for agreed inspection points before pilot or repeat orders
Sample to repeat supply
Delivery support
Lead-time planning starts after the drawing, reference sample, validation scope, and commercial forecast are clear.
- Standard sample, custom sample, pilot lot, and mass-production paths kept separate
- Export packing, destination country, annual quantity, and target launch timing reviewed early
Start From the Highest-Intent Product Path
Explore micro BLDC motor families selected around the current buyer priorities in medical devices, FPV/UAV platforms, driver-integrated modules, and custom OEM assemblies.

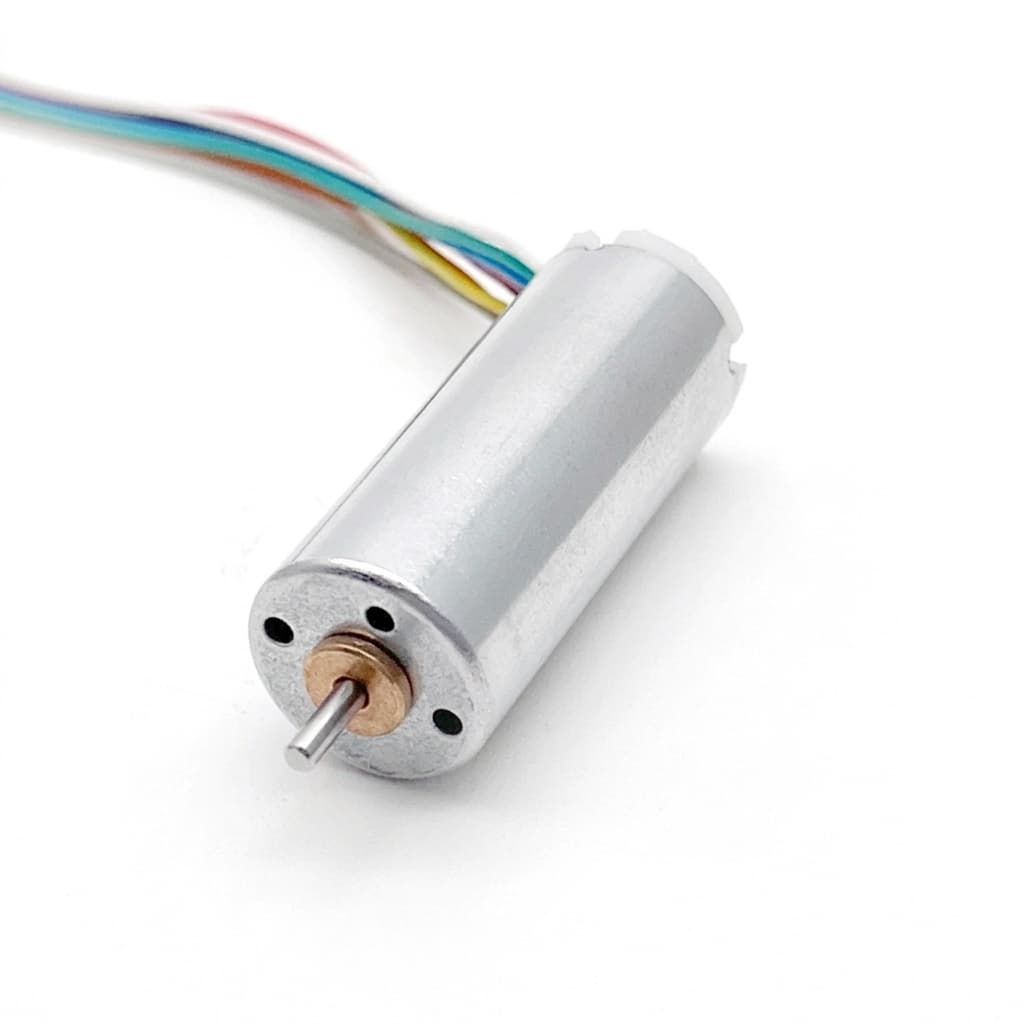

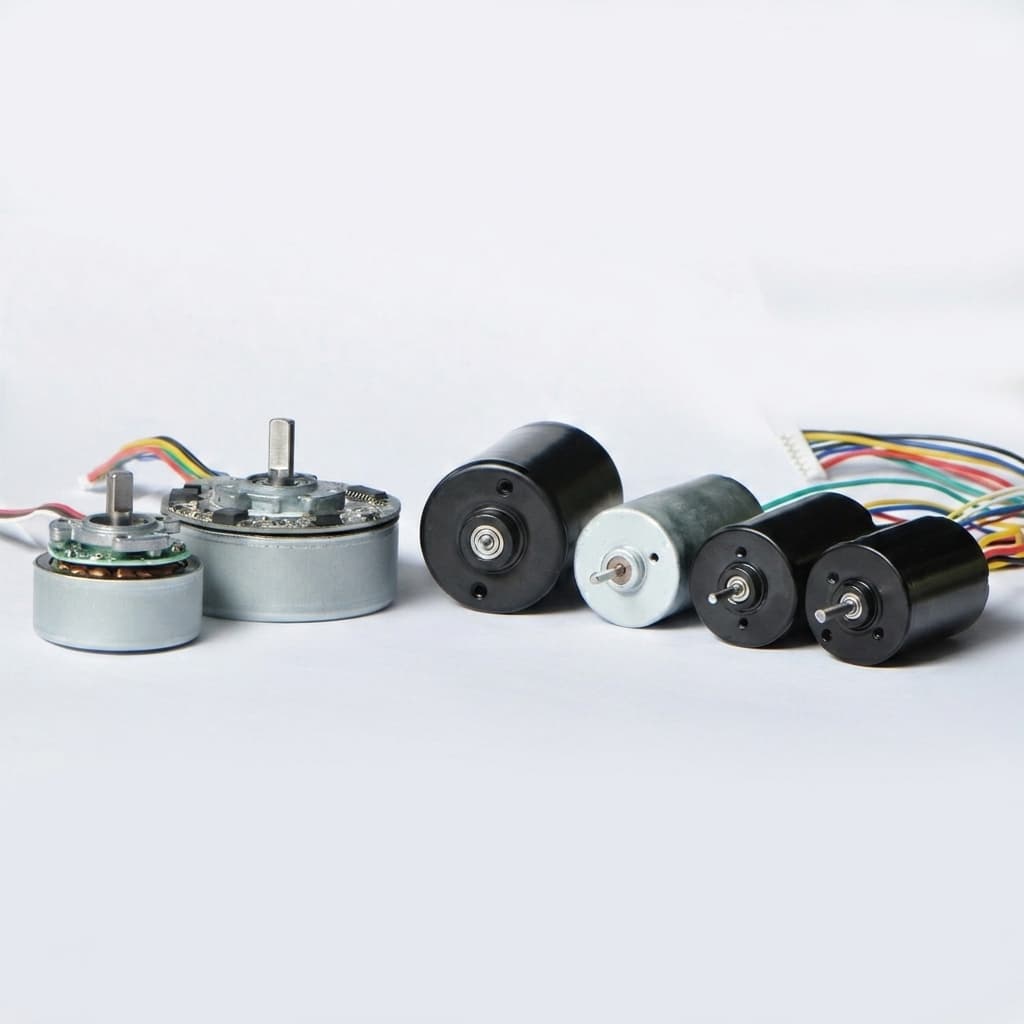

Medical Slotless Micro BLDC Motors
Smooth slotless platforms for medical and dental teams reviewing low cogging, low vibration, sterilization exposure, and documented sample validation.
Diameter and handpiece envelope
8 mm, 12 mm, 16 mm, or project-specific OD and length after drawing review

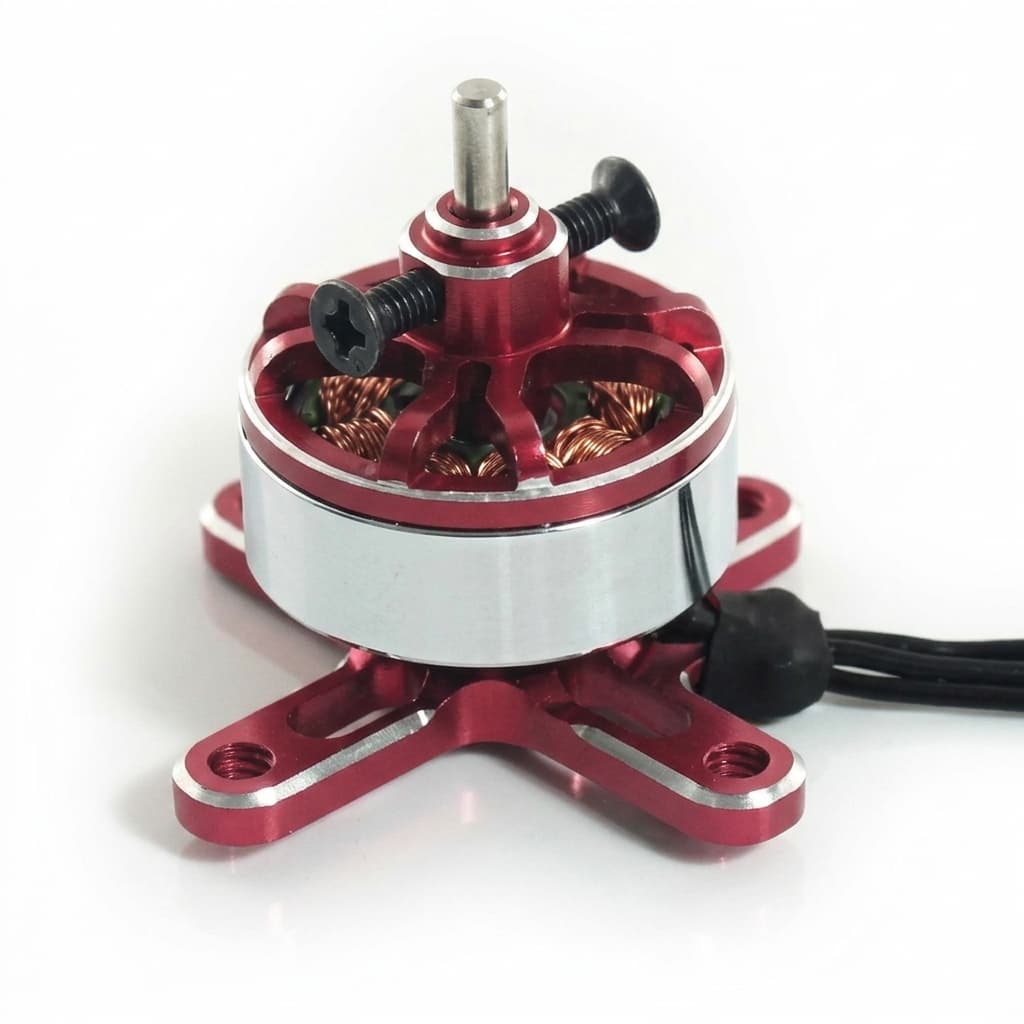

Ultra-Light FPV / UAV Micro BLDC Motors
Weight-sensitive outrunner and propulsion paths for FPV, micro UAV, and drone buyers balancing KV, thrust, heat rise, and vibration risk.
Weight and size class
0802, 1002, 1102, or custom micro outrunner envelope after drawing/sample review

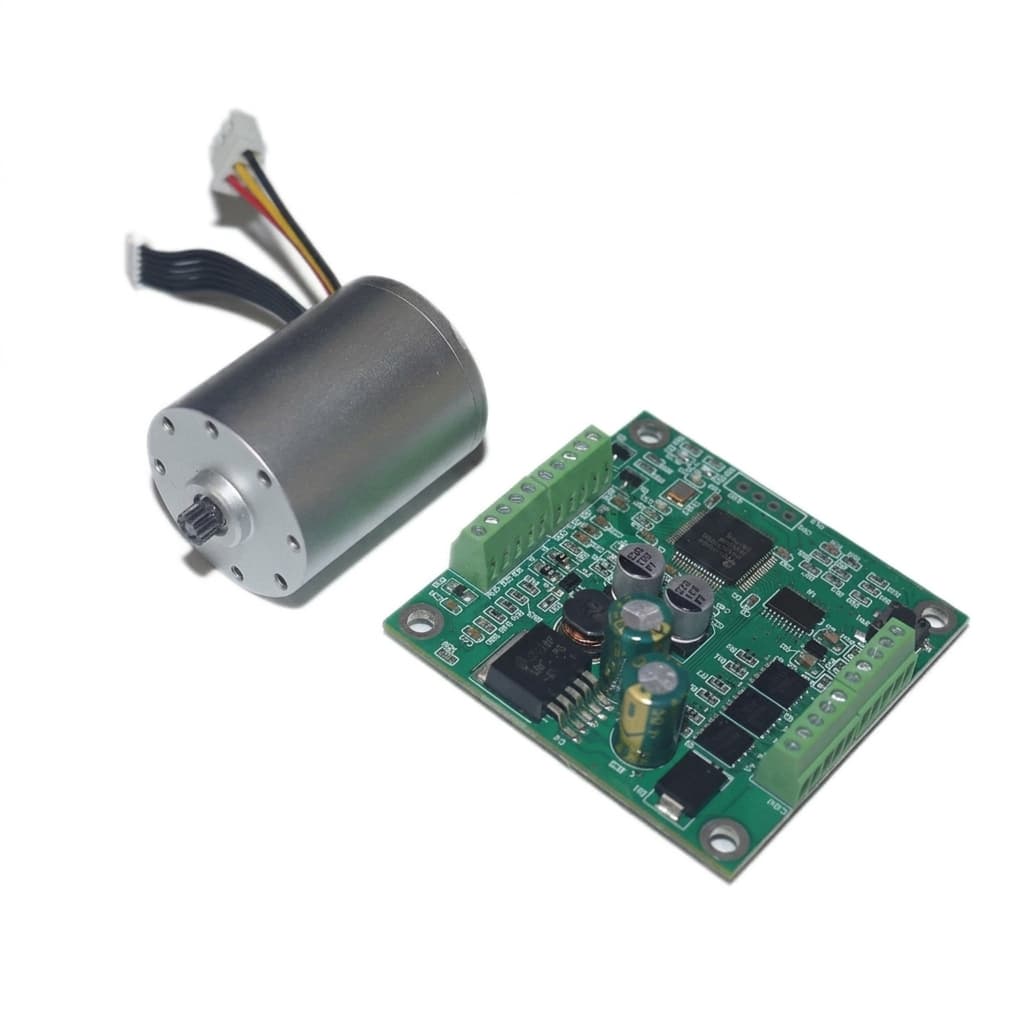

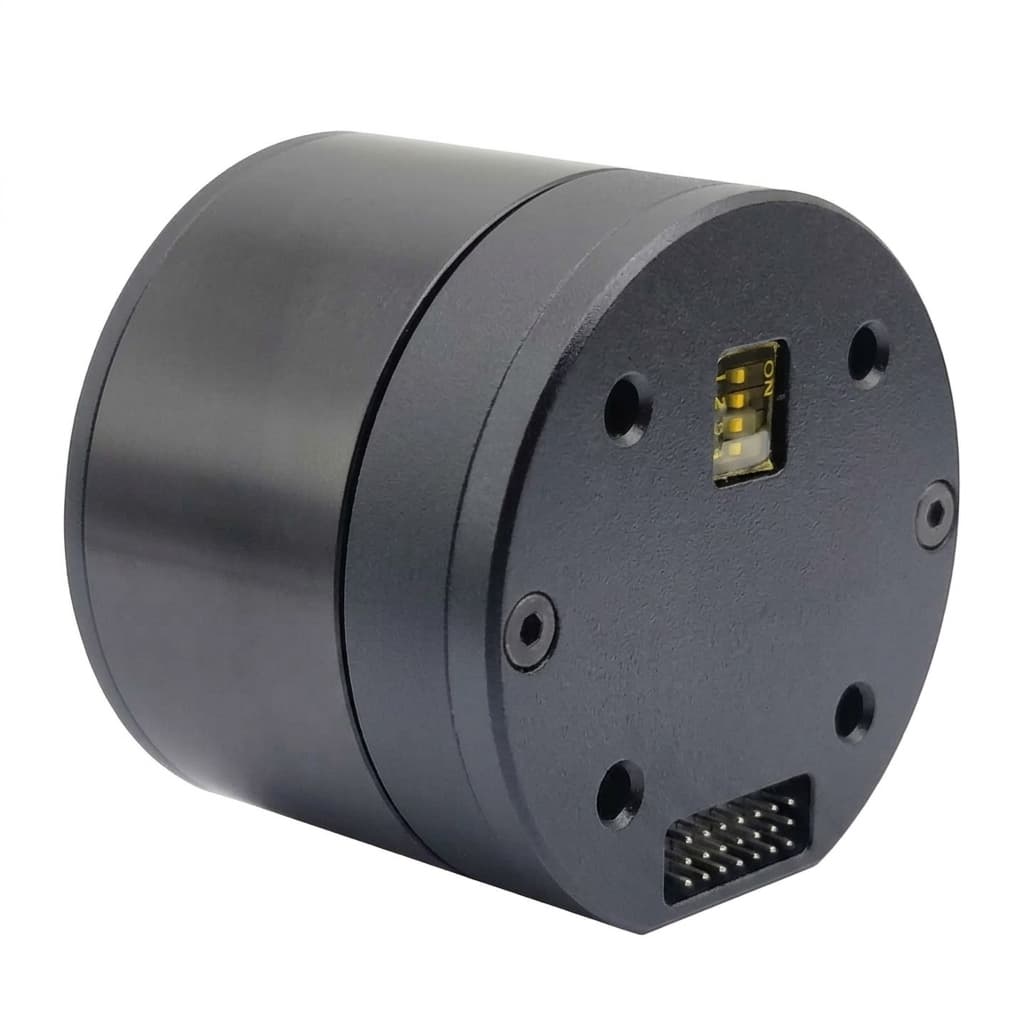

Integrated FOC Micro BLDC Motors
Motor-plus-driver options for compact devices that need quieter commutation, soft start, speed regulation, and fewer integration surprises.
Control interface
PWM, analog voltage, UART, I2C, enable, direction, tach, or project-specific command set

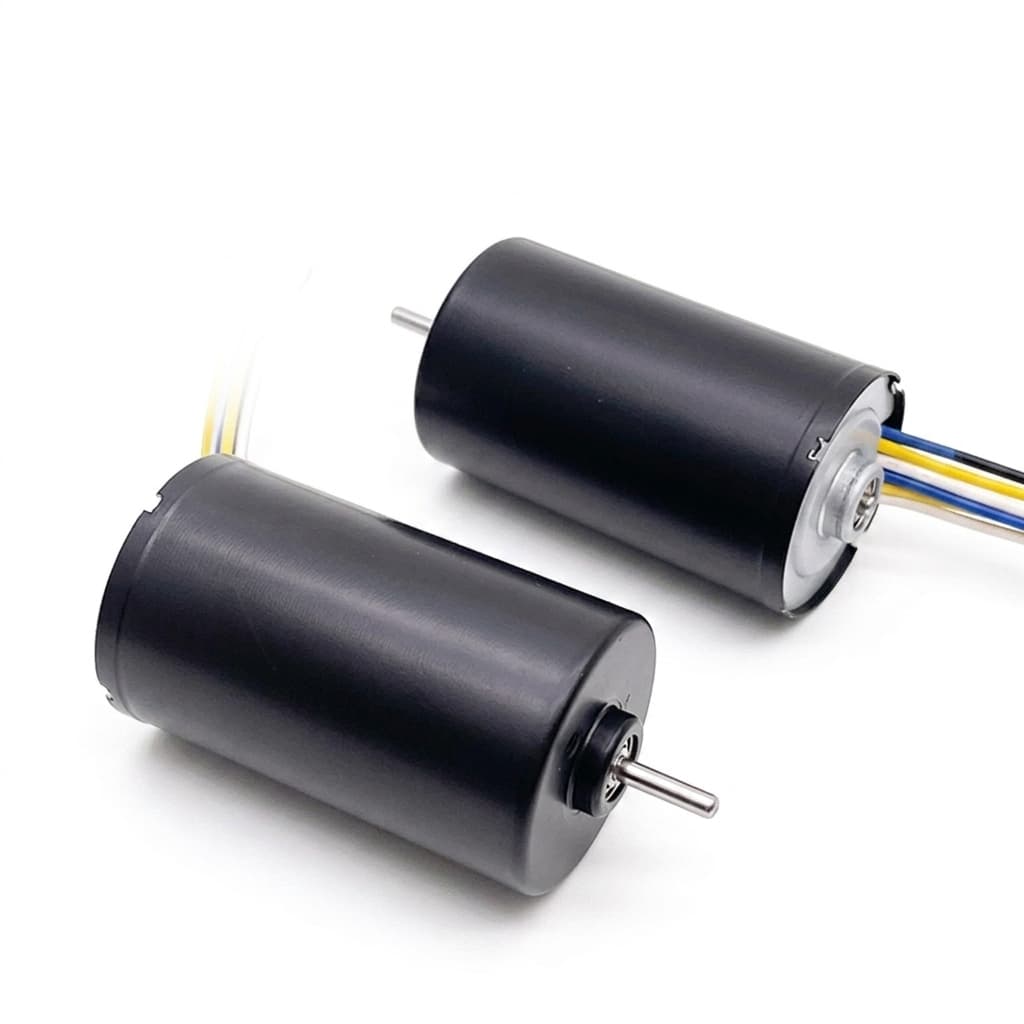

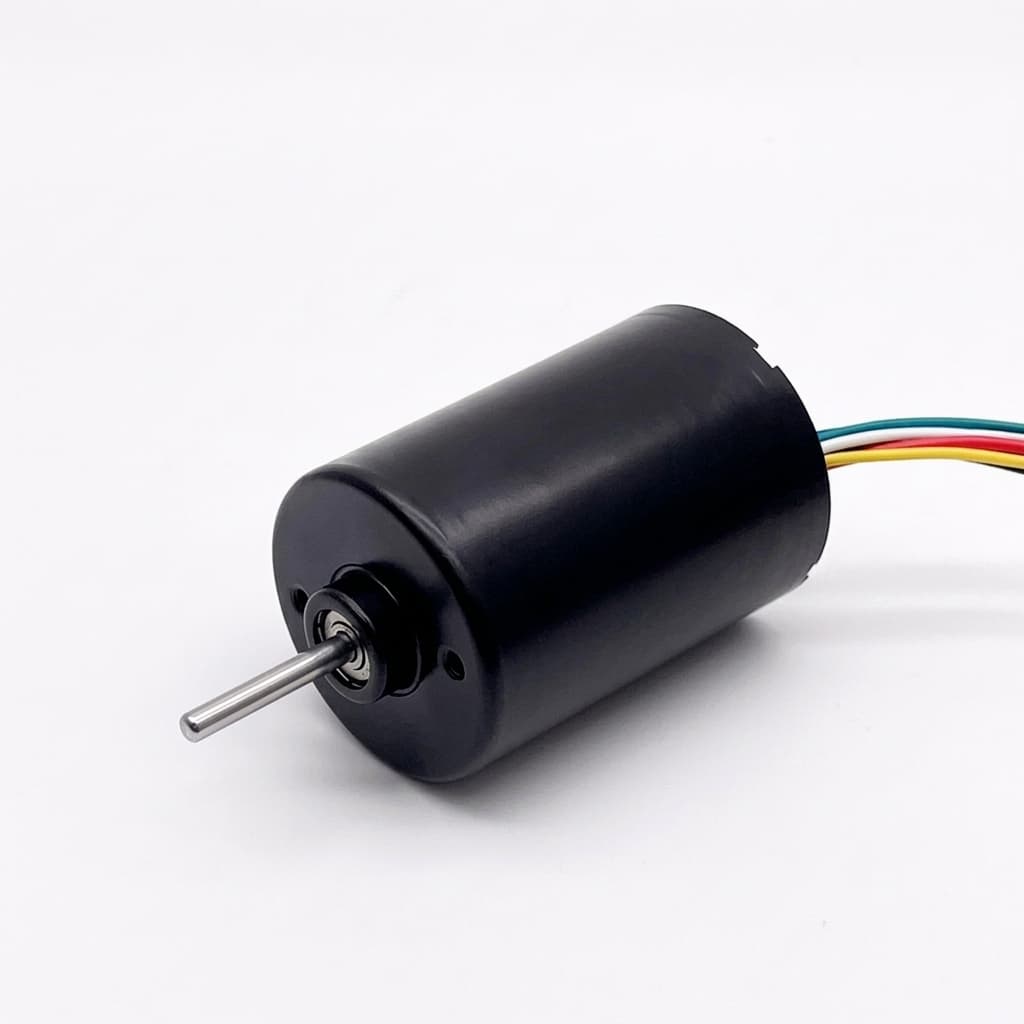

Custom Micro BLDC Assemblies
Motor-plus-interface builds covering gearbox, feedback, driver, cable, connector, harness, shaft, flange, and mounting details.
Assembly boundary
Motor-only, motor + gearbox, motor + feedback, motor + driver, or motor + harness module

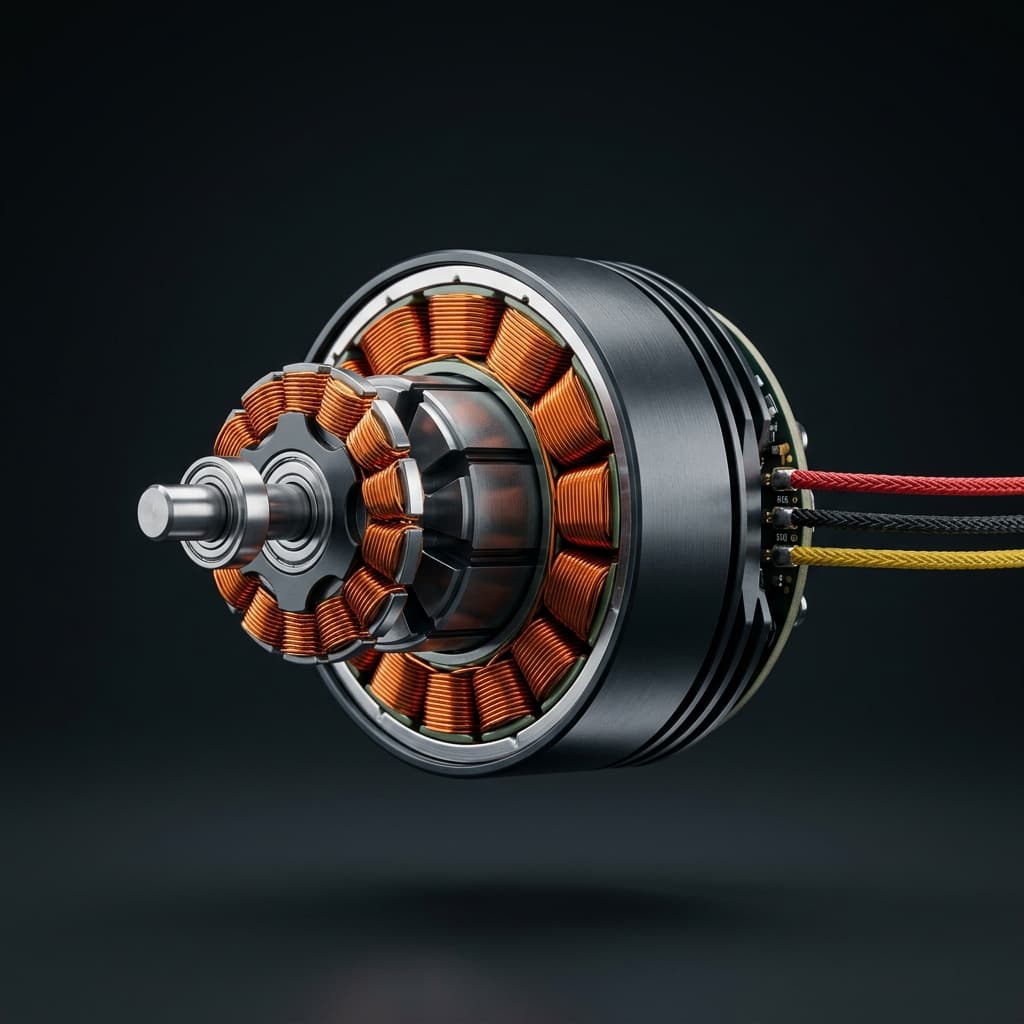

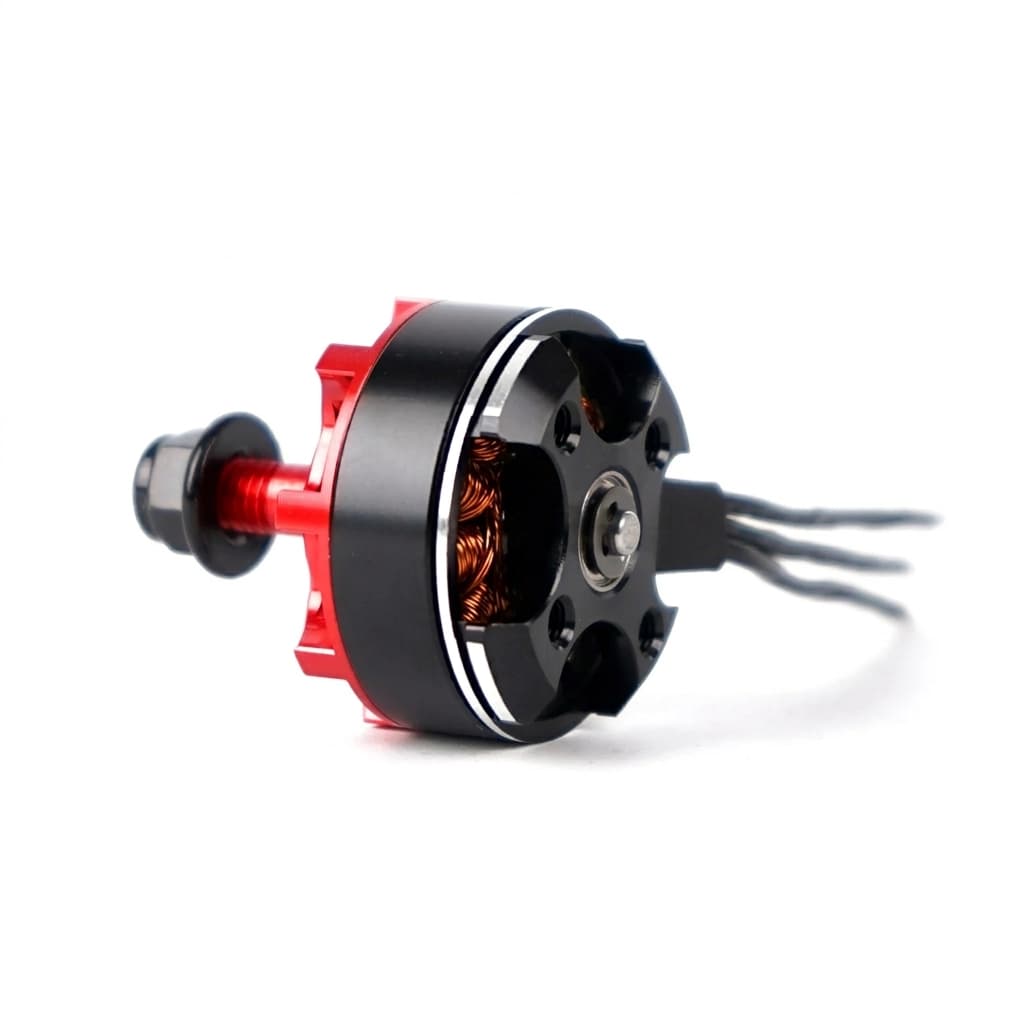

Micro BLDC Motors
Compact brushless DC motor platforms for buyers checking envelope, load, acoustic noise, lifetime, and stable electronic speed control.
Diameter class
4 mm to 36 mm outside diameter, project-specific length

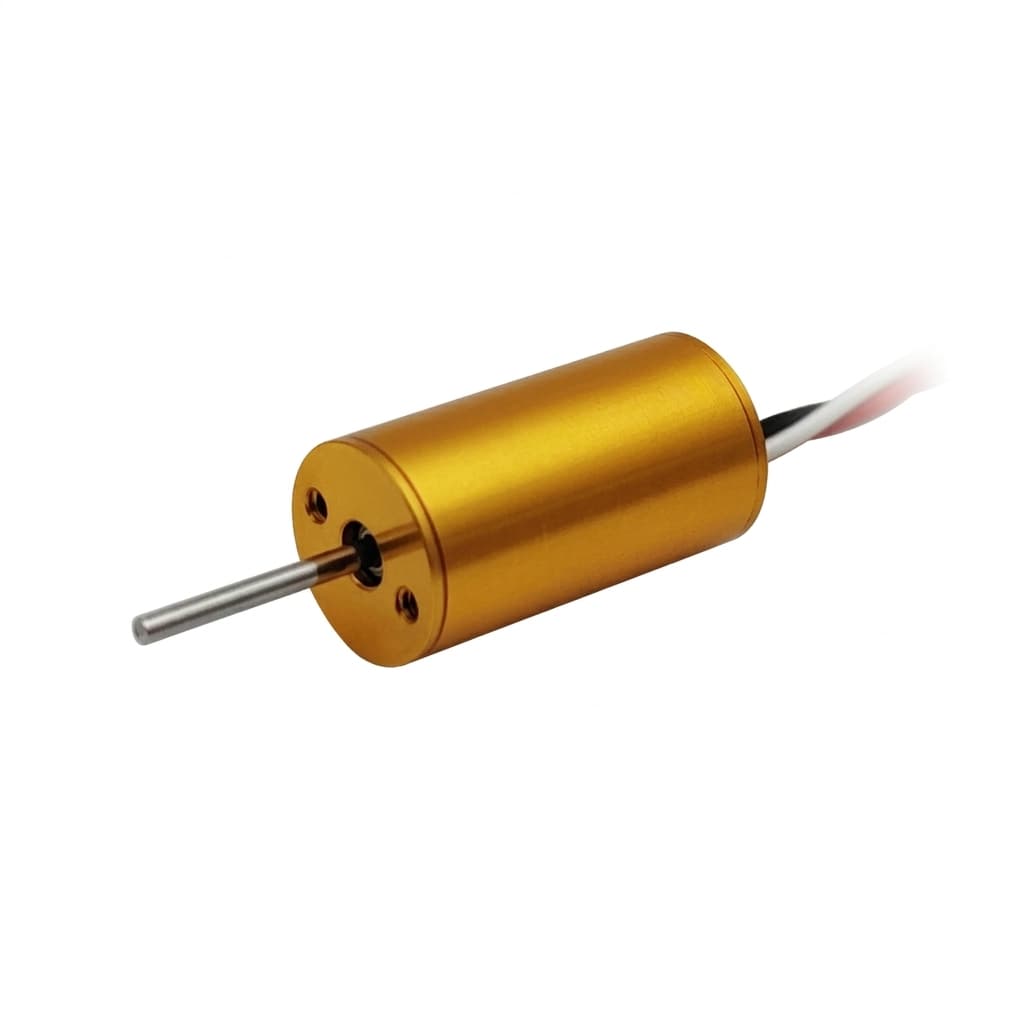

Low Noise Medical Micro BLDC Motors
Micro BLDC motor selection for portable medical devices, handheld tools, pumps, diagnostic modules, and other applications where noise, vibration, and lifetime are purchasing risks.
Noise
Project-specific dBA target
Engineering Support Buyers Actually Need
From Fit Check to Production Release
Engineering teams need fast feasibility review, exact fit, measurable validation, and a stable handoff from samples to repeat production.
Feasibility Before Samples
Share diameter, length, voltage, RPM, load, current, and duty cycle so engineering can identify a realistic platform before sample cost is spent.
Custom Interface Range
Winding, shaft, flange, bearing, cable, connector, Hall sensor, encoder, driver, and harness details can be reviewed against the final device envelope.
Validation Plan Before Release
Noise, vibration, speed, load, current, temperature rise, lifetime, and start-stop checks are framed with test conditions and acceptance criteria.
Controlled Production Handoff
After sample approval, drawings, inspection points, packaging, pilot-lot feedback, and repeat-order requirements are locked before batch supply.
Sample and Batch Path
A clearer route from first inquiry to repeat production
Micro motor projects fail when size, controller behavior, noise targets, or fixtures are left vague until after samples arrive. The homepage now makes the review path explicit for engineering and procurement teams.
Send RFQ Parameters1
RFQ package review
Send the application, diameter and length limits, voltage, speed, load, current limit, duty cycle, and target quantity.
Feasibility notes, missing parameters, and a practical motor family direction.
2
Engineering definition
Confirm winding, shaft, feedback, connector, bearing, cable, controller, and validation method before custom samples.
A controlled sample scope instead of a vague catalog substitution.
3
Sample build and validation
Measure agreed speed, current, load behavior, noise, vibration, temperature rise, and endurance items under stated conditions.
Sample feedback that can be compared with buyer-side device testing.
4
Pilot lot and repeat supply
Lock drawings, inspection records, packaging, export details, and lead-time assumptions before moving into batch orders.
A production handoff path with fewer late interface or quality surprises.
What to include in a useful inquiry
A short but complete RFQ lets engineering check feasibility, validation risk, and lead-time assumptions before suggesting a standard platform or custom sample build.
Mechanical
- OD and maximum length
- Shaft/flange/bearing
- Cable, connector, pinout
Electrical
- Rated voltage range
- RPM, KV, torque/load
- Current, power, heat limit
Validation
- Noise target in dBA
- Duty cycle and life target
- Test fixture and load profile
Commercial
- Prototype quantity
- Annual forecast
- Destination and timeline
Typical Application Paths
Use-case pages connect the motor choice to acoustic noise, vibration, speed stability, service life, and integration risk in the final product.
Medical Device Micro BLDC Motors
Low-noise, long-life micro BLDC motor sourcing for portable medical devices, pumps, handheld instruments, diagnostics, and therapy modules.

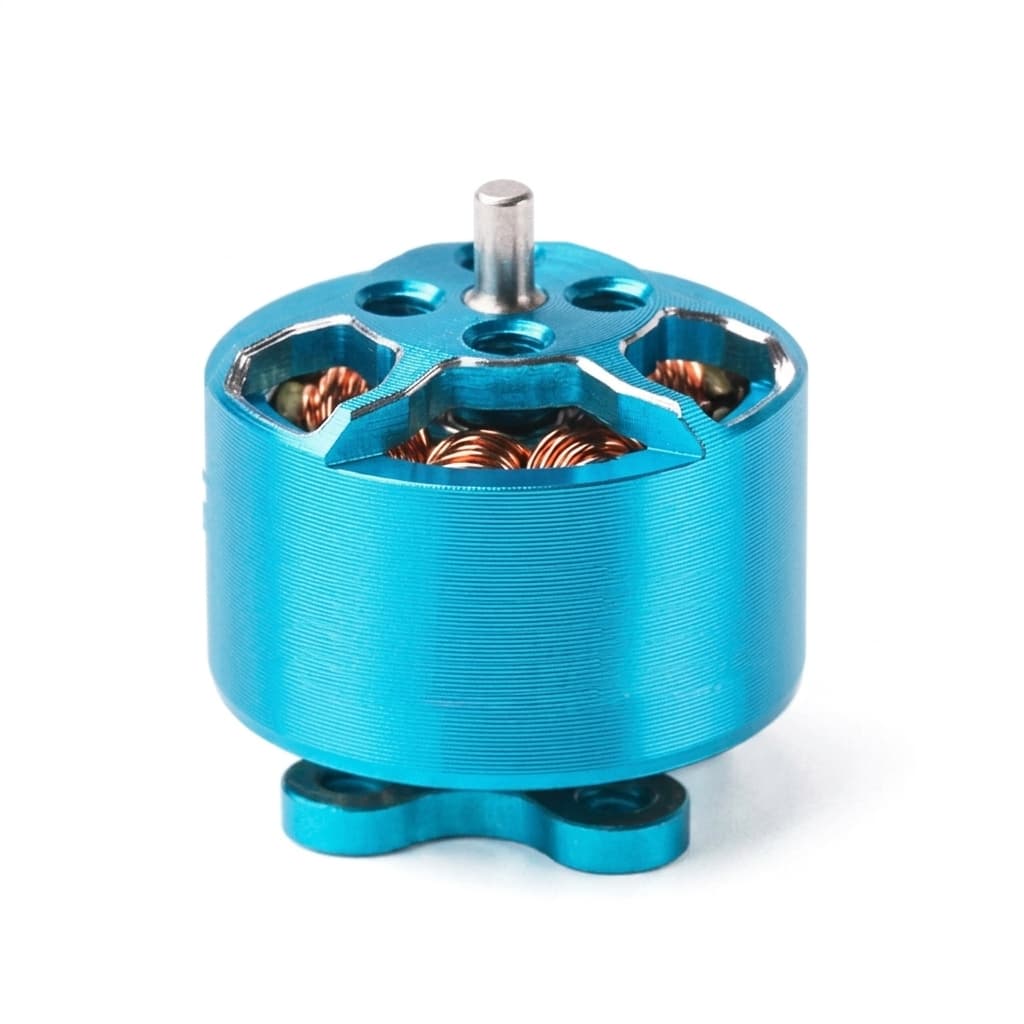

UAV and Drone Micro BLDC Motors
High-speed, lightweight micro BLDC motor support for micro UAV propulsion, compact fans, gimbals, and vibration-sensitive drone assemblies.

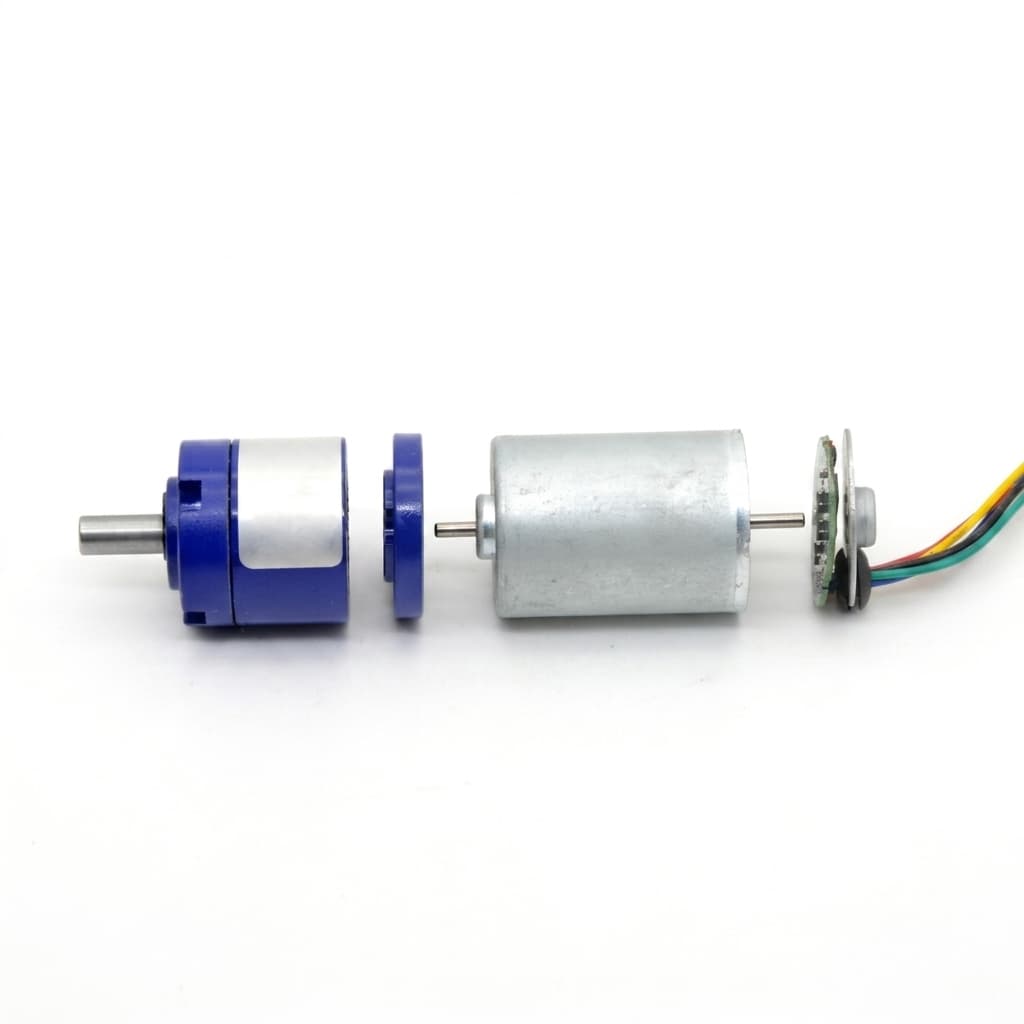

Compact Appliance Micro BLDC Motors
Micro BLDC motor sourcing for high-end small appliances, personal care devices, quiet fans, blowers, pumps, and compact smart home mechanisms.

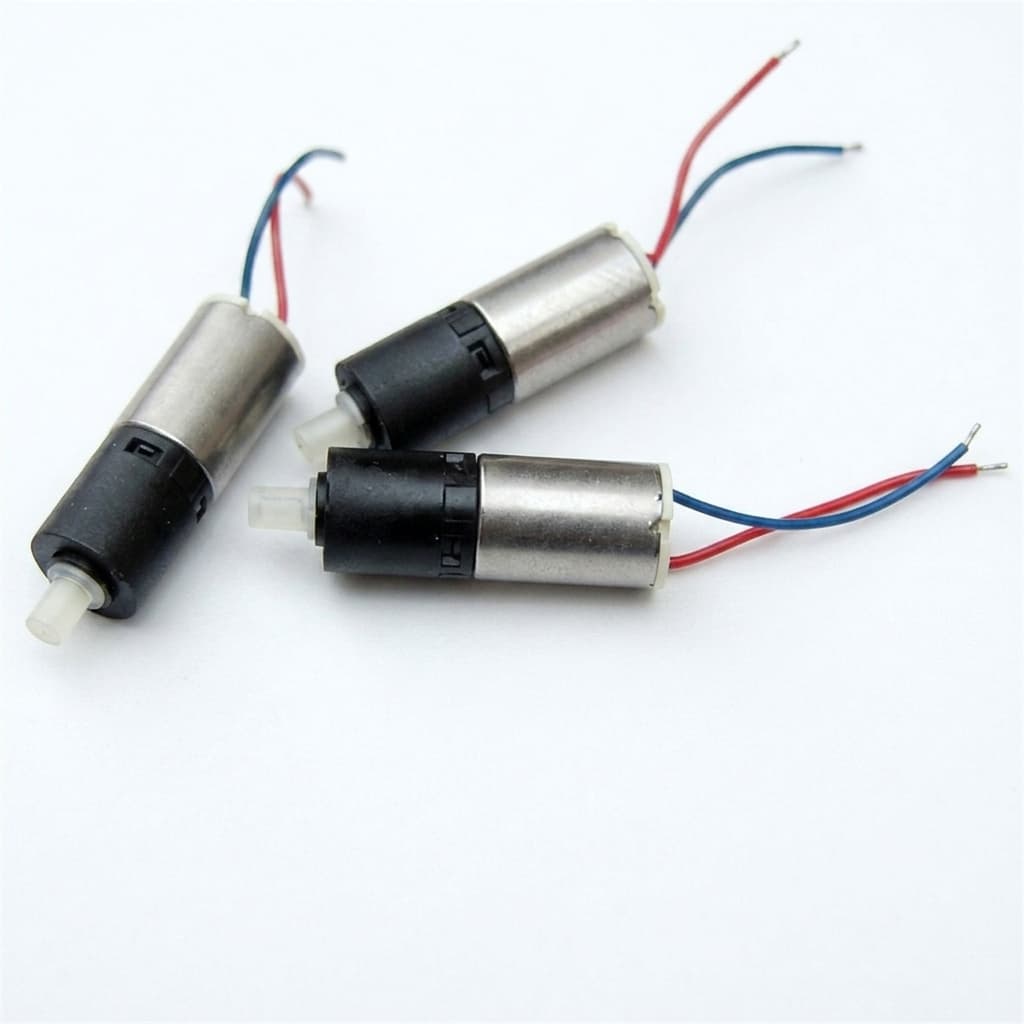

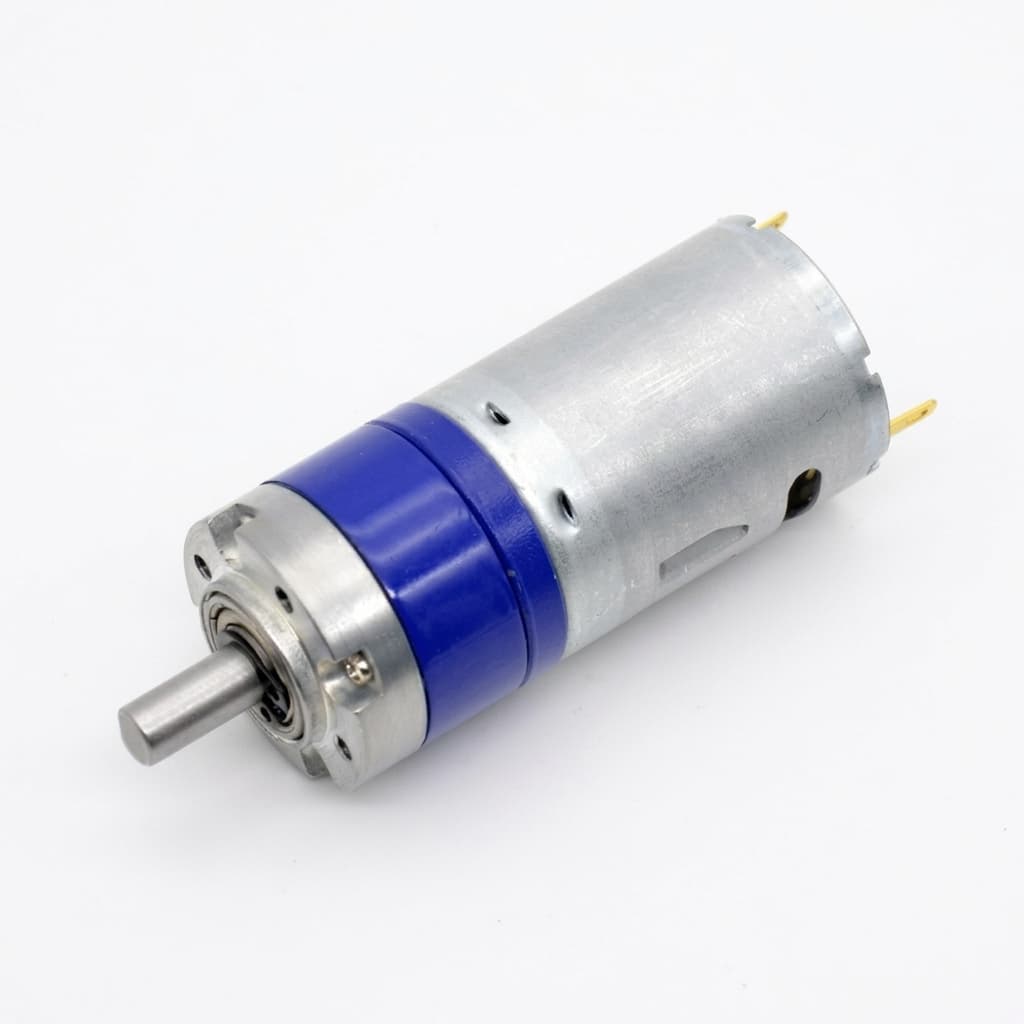

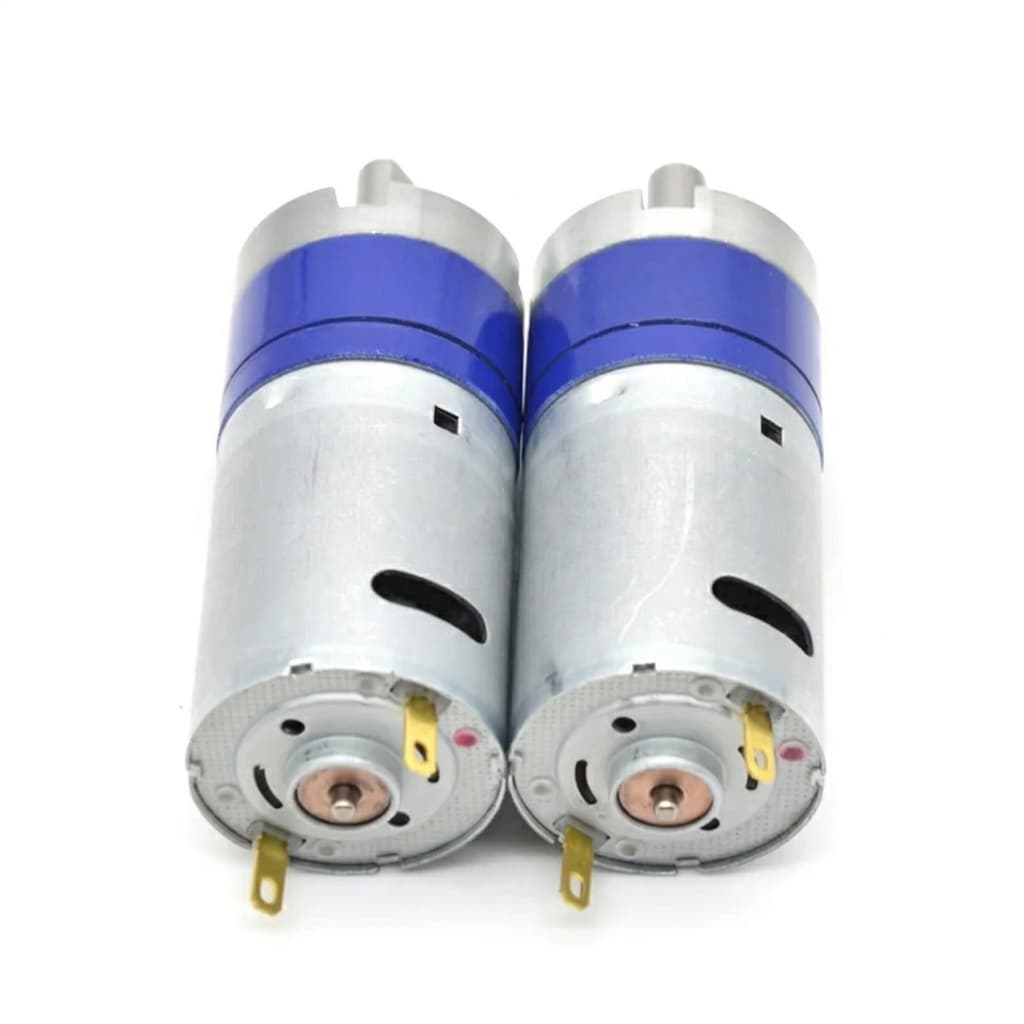

Robotics Micro BLDC Motors
High-torque, responsive micro BLDC and gear motor sourcing for robotic joints, grippers, exoskeletons, and automated mechanisms.

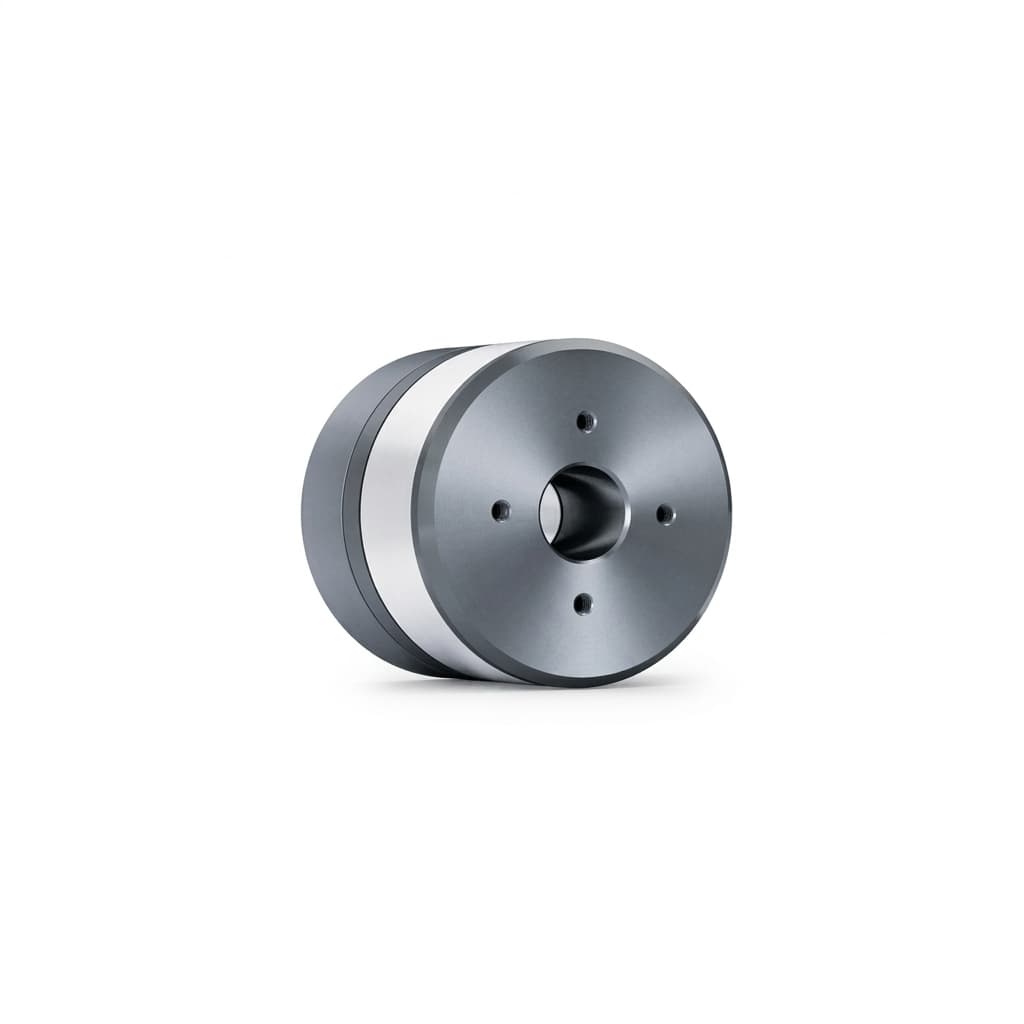

Precision Instruments Micro BLDC Motors
Low-vibration micro BLDC motors for optical equipment, laboratory devices, analyzers, and metrology instruments.
Knowledge Base
Latest Engineering Guides
Practical buyer-side checklists, decision frameworks, and technical insights from our application engineering team.

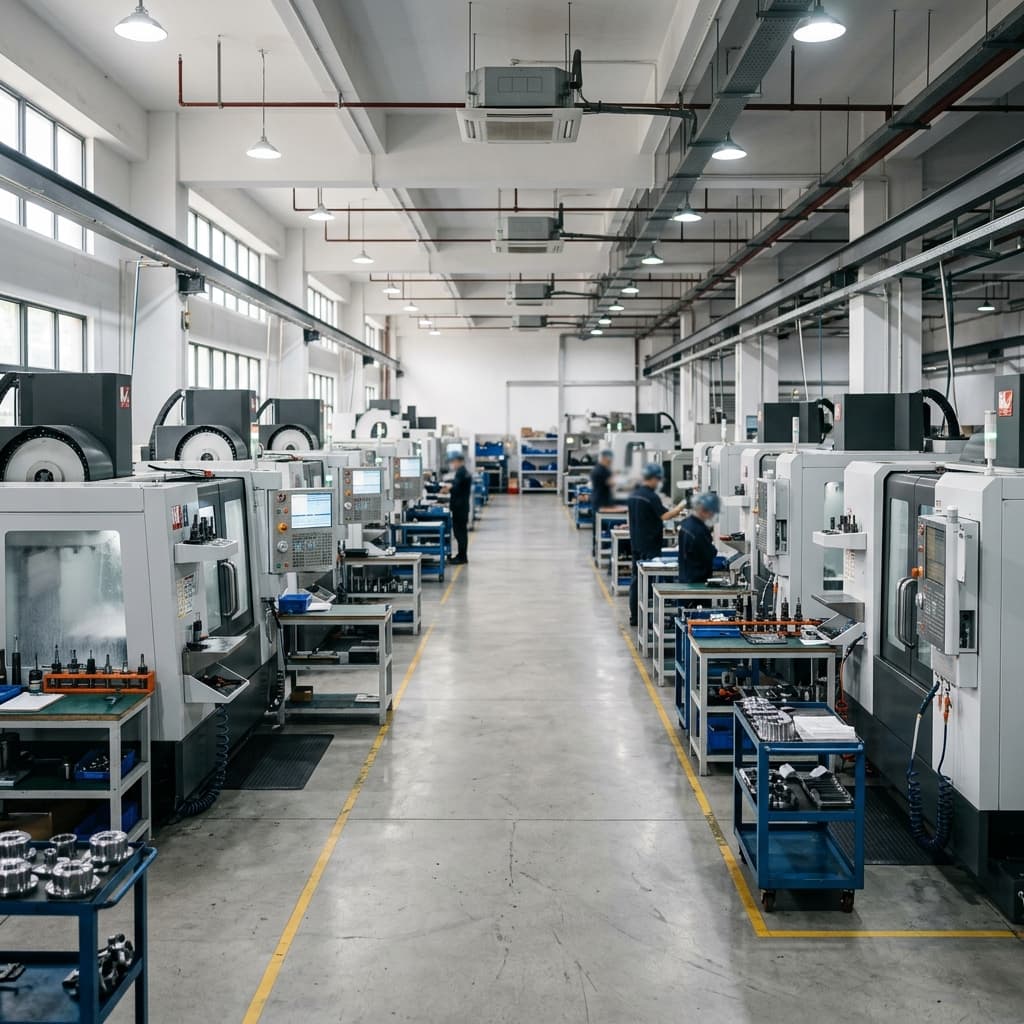

Manufacturing Support
Shenzhen & Dongguan Manufacturing Hub
Precision machining, automated winding, assembly, balancing, and validation support for high-mix, long-lifecycle micro BLDC repeat supply.
DrawingsReview Before Samples
PilotLot Validation
FinalInspection Records
FAQ
RFQ and Procurement Support
Send the Motor Parameters That Matter
Share target size, voltage, speed, load, noise, life, control method, drawings, quantity, and timeline to receive engineering feedback and quotation support.
Inquiry Email
Include motor type, OD, voltage, speed, load, quantity, and destination.
