Audit Signal
Dynamic balancing records
ISO 1940-1 G1.0 / G0.4 request scope
For high-speed micro BLDC rotors, balance grade should be tied to target RPM, rotor geometry, sample lot, and vibration acceptance criteria.
Review the manufacturing, quality, validation, compliance, and IP-control records that matter before a micro BLDC program moves from first sample to pilot lot.

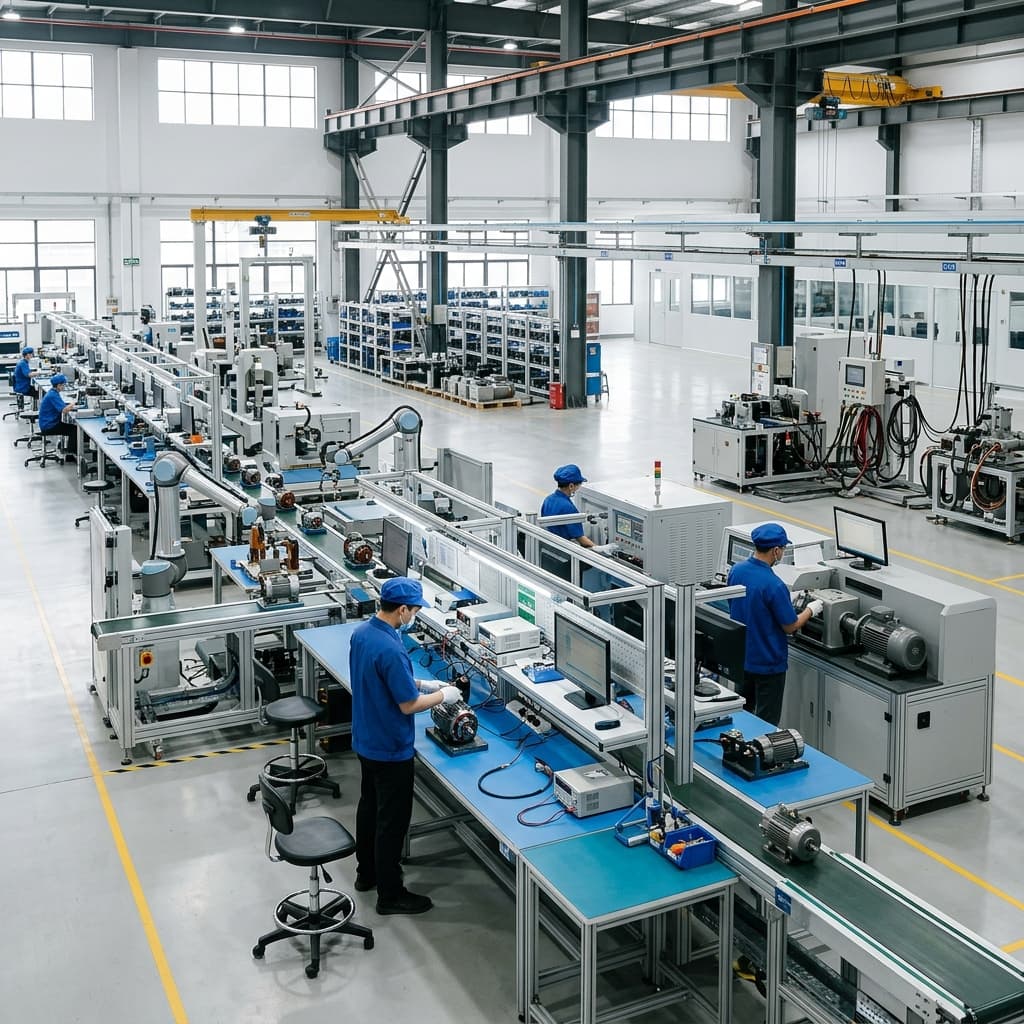

Representative manufacturing context, not facility, cleanroom, certification, validation, or audit proof.
Audit Signal
ISO 1940-1 G1.0 / G0.4 request scope
For high-speed micro BLDC rotors, balance grade should be tied to target RPM, rotor geometry, sample lot, and vibration acceptance criteria.
Audit Signal
ISO 13485-style document review when medical scope applies
Medical device buyers can ask for management, CAPA, traceability, change-control, and supplier-control evidence before pilot release.
Audit Signal
Cleanliness or ISO Class 7 expectation confirmed per project
Cleanroom, particle, handling, and packaging requirements should be separated from general factory photos and verified against the actual motor assembly scope.
Audit Signal
NDA, revision log, ECN / PCN communication path
Confidential drawings, reference samples, pinouts, and customized interfaces should move through controlled recipients and approved revision baselines.
This matrix turns broad manufacturing language into practical RFQ evidence. It also protects buyers from comparing a catalog motor quote with a controlled OEM assembly quote.
| Capability Area | Buyer Input | Supplier Evidence to Request |
|---|---|---|
| Winding, magnet, and rotor work | Voltage range, target RPM or KV, torque/load curve, current limit, heat path, and target efficiency. | Winding direction, magnet/material note, rotor balance plan, sample revision, and open engineering risks. |
| Bearing, shaft, and mechanical interface | OD, length, shaft shape, radial/axial load, flange, mounting holes, cable exit, and connector envelope. | Controlled drawing notes, inspection dimensions, bearing selection basis, shaft runout checks, and change log. |
| Noise, vibration, and lifetime validation | dBA distance, fixture, load, controller, duty cycle, ambient temperature, life hours, and failure criteria. | Noise method, vibration or balance record, temperature-rise data, endurance plan, sample lot, and test condition summary. |
| Compliance and material documents | Destination market, RoHS, REACH, CE support, CoC, material declaration, inspection report, or test report format. | Confirmed document list tied to model, material stack, drawing revision, production lot, and shipment market. |
| Pilot lot and repeat shipment control | Prototype quantity, annual forecast, CTQ limits, packaging, label, destination, and change-notification expectations. | Sample approval packet, outgoing inspection items, batch record, traceability fields, and pilot-to-mass-production handoff notes. |
Buyers in medical, UAV, robotics, appliances, and precision instruments usually need the same decision path: define the product boundary, attach measurable CTQs, request proof by revision, then freeze the pilot handoff.
Review IP and compliance workflowSeparate motor-only, motor-plus-driver, motor-plus-gearbox, harness, packaging, and compliance scope before requesting evidence.
List the dimensions, RPM, current, noise, vibration, temperature, life, connector, and packaging items that will decide approval.
Request that datasheets, drawings, inspection records, and validation summaries reference the approved model, lot, and drawing revision.
Confirm which records are repeated for pilot lots and which changes require engineering approval before mass production.
Requestable Documents
The highest-intent buyers often ask for CAD files, datasheets, test records, or NDA handling before they are ready to submit a complete RFQ. Route those requests directly into WhatsApp or email with project context.
Evidence Asset Registry
This registry separates buyer-facing evidence requests from public downloads. It keeps certification, CAD, test, and inspection language honest until the exact model, revision, lot, and market scope are confirmed.
3
Request only
9
Buyer input required
5
Pending real asset
No generic public certificates are published here; files are attached after model, revision, destination, and confidentiality scope are confirmed.
Product and factory photos may support context, but they are not treated as proof of ISO 13485, ISO Class 7, G0.4 balancing, autoclave life, or compliance unless tied to an approved asset ID.
ISO 13485 audit readiness, Class 7 clean assembly, G0.4 balancing, autoclave cycles, UAV thrust tables, acoustic curves, and approved process photos stay request-scoped until real files are available.
Specification
Prepared after envelope and electrical targets are fixed
Engineering
Shared through RFQ or NDA workflow
Validation
Requires fixture, load, controller, and dBA distance
Validation
Generated from agreed load and thermal condition
Validation
Scoped after life hours, cycles, and failure criteria
Quality
Shared after CTQ list and lot scope are known
Quality
Prepared after prototype quantity and acceptance checklist are known
Compliance
Confirmed by market, material stack, and shipment scope
Compliance
Requires approved certificate, entity, scope, and audit owner before public use
Compliance
Scoped by destination market, material stack, and product revision
Validation
Requires real balancing machine output or approved video by rotor and speed grade
Quality
Requires approved cleanroom statement, photos, or process record before public use
Validation
Requires real cycle method, sample revision, and post-cycle inspection data
Validation
Generated only for a specific KV, voltage, propeller, ESC, and airflow condition
Validation
Prepared after fixture, load, distance, speed range, and controller mode are fixed
Quality
Requires public-use approval for each product, process, worker, and facility image
IP Control
Handled through project-controlled recipients
Public paths are reserved for approved, real buyer-facing files. Until then, the correct action is to request the evidence package with the model, revision, and destination scope.
Request evidence packageBuyer Evidence Brief
This brief converts the evidence registry into an internal qualification request. It keeps motor requirements, document scope, and approval responsibilities aligned before the RFQ is sent.
Includes all requestable evidence assets without publishing private files.
Envelope, voltage range, RPM or KV, load point, shaft, connector, controller mode, and revision owner.
CTQ dimensions, electrical limits, noise or vibration gates, AQL expectation, lot traceability, and approval criteria.
Destination market, RoHS or REACH scope, CE support need, NDA entity, permitted recipients, and document format.
Prototype quantity, annual forecast, target timeline, packaging or labeling scope, and commercial comparison basis.
Controlled specification sheet
controlled-specification-sheet
Buyer input required
Applications engineering
Drawing and interface review
drawing-interface-review
Request only
Mechanical engineering
Noise and vibration test method
noise-vibration-test-method
Buyer input required
Validation engineering
Load, current, speed, and thermal data
load-thermal-data
Buyer input required
Test engineering
Lifetime and duty-cycle validation plan
lifetime-validation-plan
Buyer input required
Reliability engineering
Inspection report or quality control plan
inspection-control-plan
Request only
Quality engineering
Sample approval packet
sample-approval-packet
Buyer input required
Quality and applications engineering
Compliance document scope
compliance-document-scope
Buyer input required
Quality and commercial team
ISO 13485 supplier audit ready statement
iso-13485-supplier-audit-ready
Pending real asset
Quality and compliance lead
RoHS, REACH, and CE support document pack
rohs-reach-ce-document-pack
Buyer input required
Quality and commercial team
ISO 1940-1 G1.0 / G0.4 dynamic balancing report
dynamic-balancing-g04-report
Pending real asset
Validation and quality engineering
ISO Class 7 clean assembly evidence
cleanroom-assembly-evidence
Pending real asset
Quality and production engineering
Autoclave cycle validation record
autoclave-cycle-validation
Pending real asset
Reliability and medical applications engineering
UAV thrust, efficiency, and thermal test table
uav-thrust-efficiency-table
Buyer input required
Test and applications engineering
Noise and vibration curve pack
noise-vibration-curve-pack
Buyer input required
Validation engineering
Approved factory and process photo index
approved-factory-process-photos
Pending real asset
Marketing, production, and quality leads
NDA and drawing revision control
nda-revision-control
Request only
Commercial and engineering leads

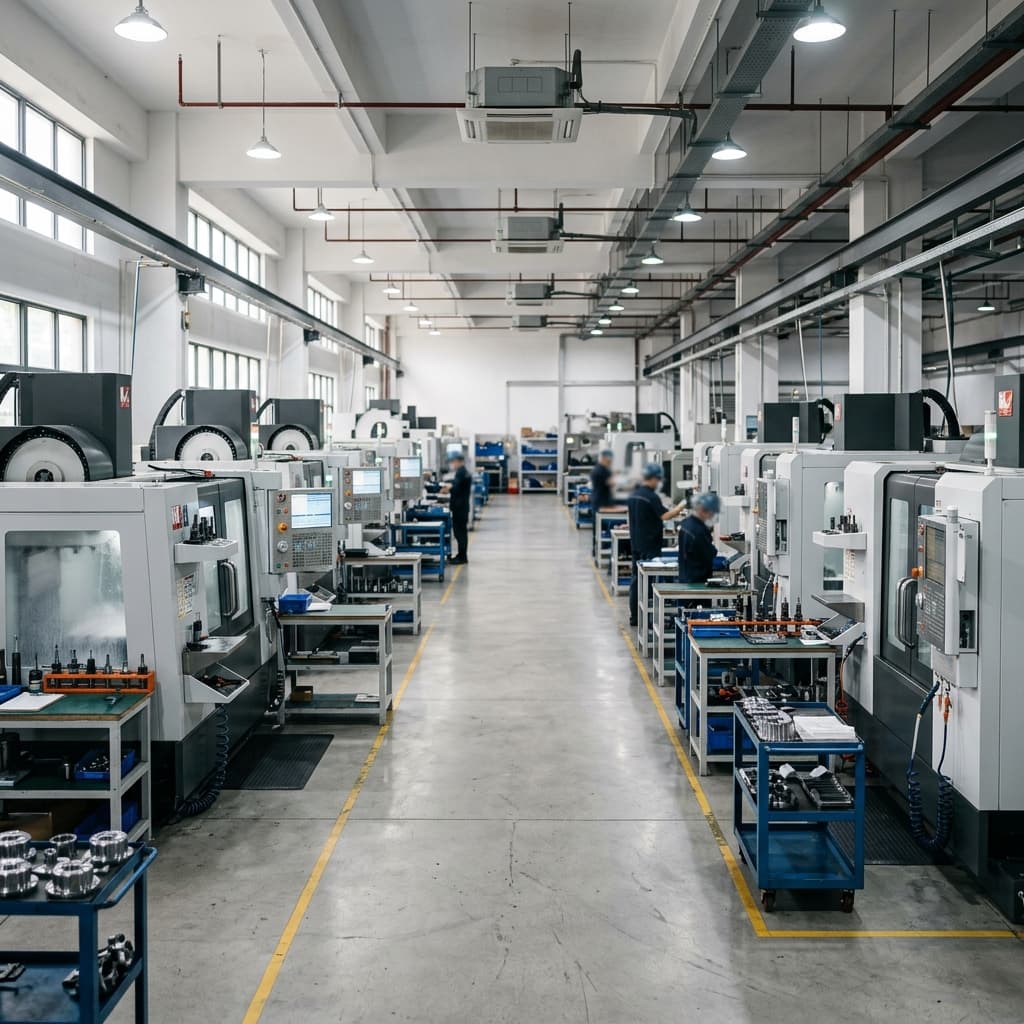

Representative manufacturing context, not facility, cleanroom, certification, validation, or audit proof.
Micro BLDC buyers should not rely on generic icons alone. Every compliance or quality statement should name the product revision, sample lot, material stack, destination market, method, and acceptance rule that makes the evidence useful.
No. Certification, cleanroom, compliance, and validation claims should be confirmed by project, model, material stack, revision, and destination market before they are used as buyer evidence.
Ask for NDA status, permitted recipients, drawing storage and revision control, sample handling, return or disposal expectations, and the change-notification path.
A useful report attaches the measured value to voltage, load, fixture, controller, distance, ambient condition, duty cycle, sample lot, acceptance criteria, and drawing revision.
Evidence Package Request
Use this request path when your team needs datasheets, CAD scope, noise or vibration method, lifetime plan, inspection records, compliance documents, or NDA handling before a complete motor specification is ready.
