Screen by envelope first
Start with diameter, length, shaft, mounting, cable exit, and connector. Micro motor projects usually fail integration before they fail headline speed.
Compare representative 3V micro BLDC, coreless, geared, fan, pump, miniature, and drone brushless motor options before sending an OEM RFQ.
This catalog is for early sourcing and engineering alignment. Use each item as a starting point for package size, speed, power, and motor type, then confirm load, duty cycle, temperature rise, noise, shaft, connector, feedback, and validation targets before production selection.
Start with diameter, length, shaft, mounting, cable exit, and connector. Micro motor projects usually fail integration before they fail headline speed.
Use catalog voltage, speed, and power only as a first-pass reference. Loaded RPM, current, heat rise, and noise must be checked in the buyer fixture.
Winding, shaft, lead wire, connector, bearing, feedback, gearhead, driver, label, and packaging can change the production quote and validation plan.
Include application, load, voltage, speed target, current limit, duty cycle, noise, lifetime, sample quantity, annual quantity, and destination market.
The current catalog contains 49 representative motor records across 19 naming groups. All listed records are 3V starting points, so the engineering review should still confirm winding, load, thermal rise, and control mode for the final OEM device.
| Catalog Group | Items | Speed Range | Power Range |
|---|---|---|---|

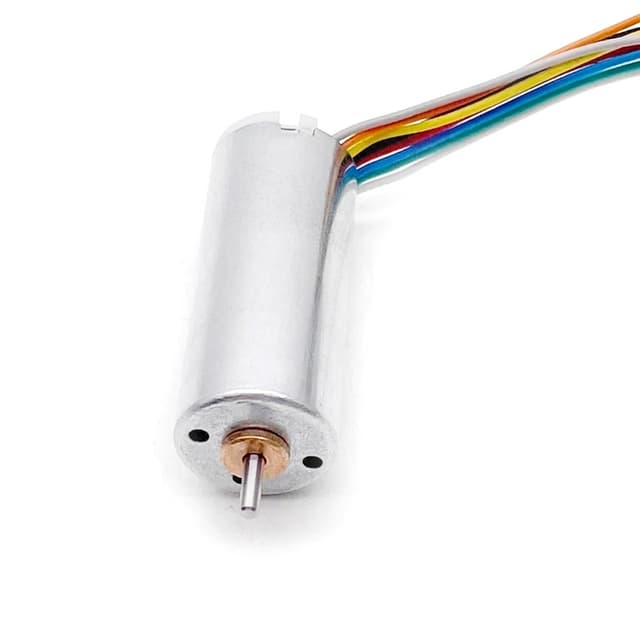

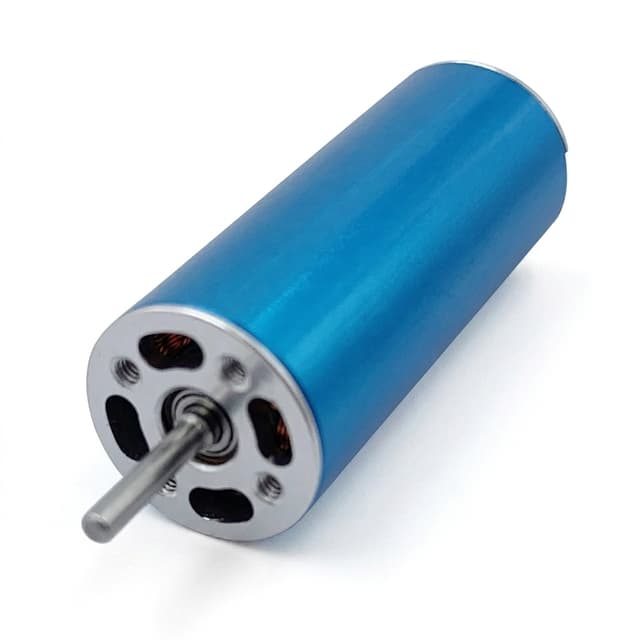

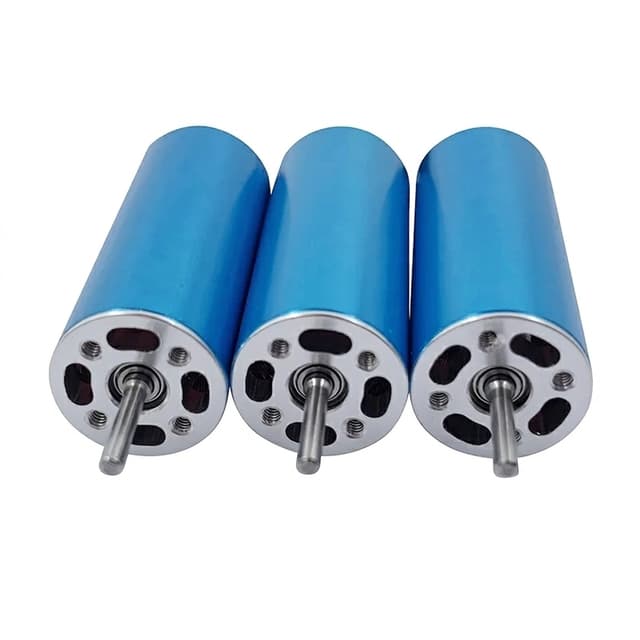

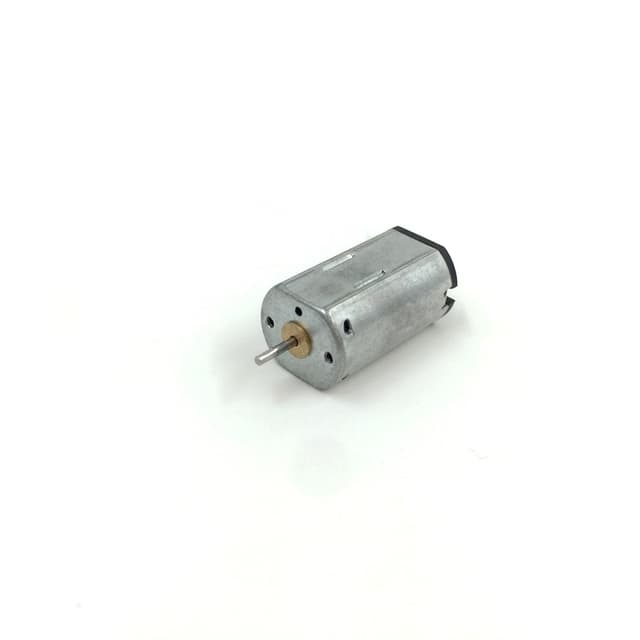

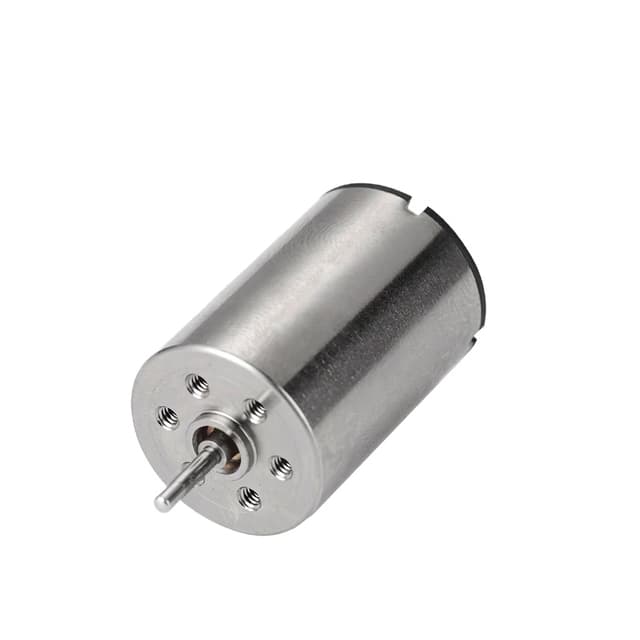

| 12mm Micro Brushless Dc Motor | 5 | 1,000-30,000 RPM | 0.1-5 W |

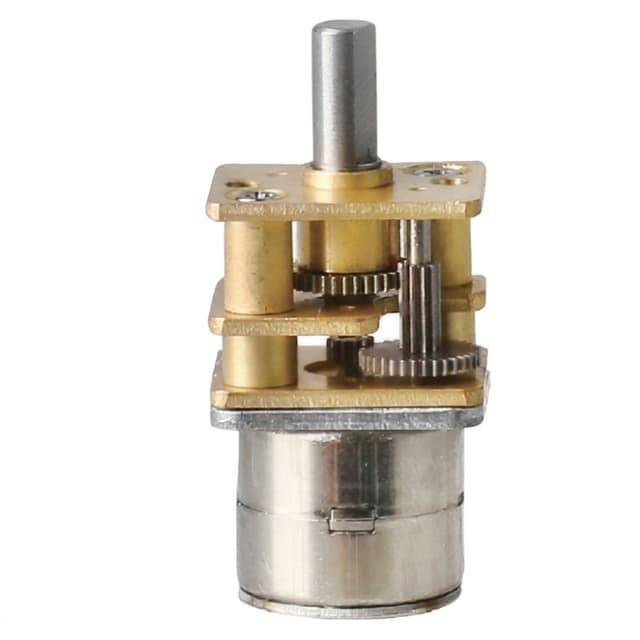

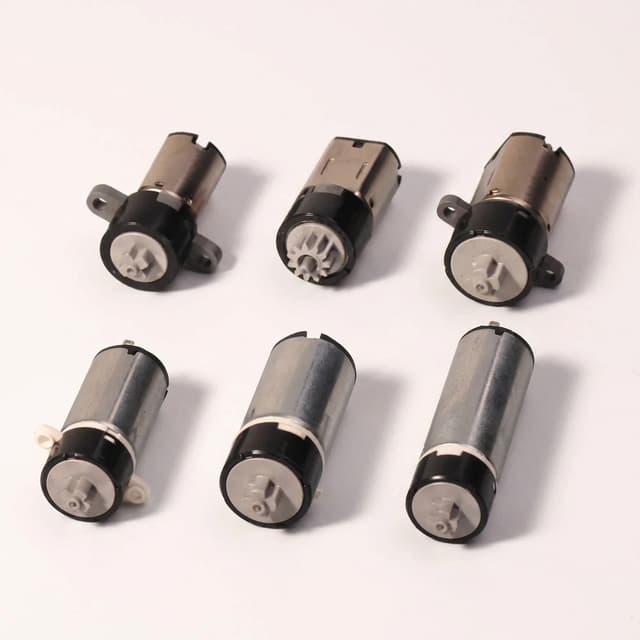

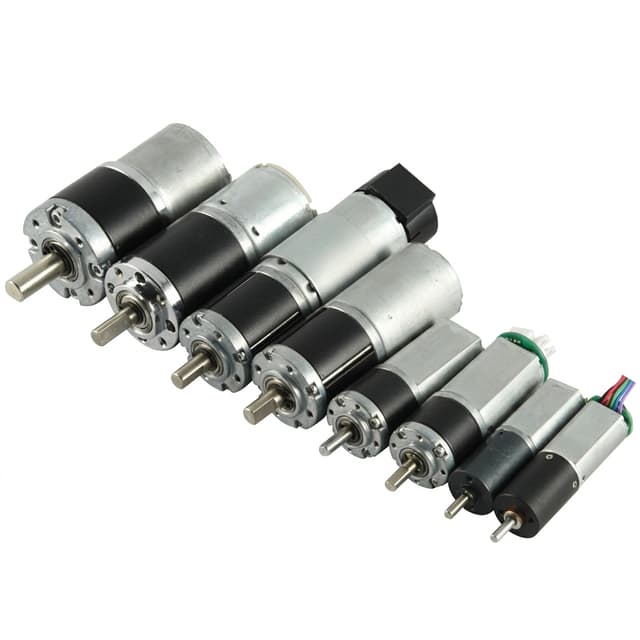

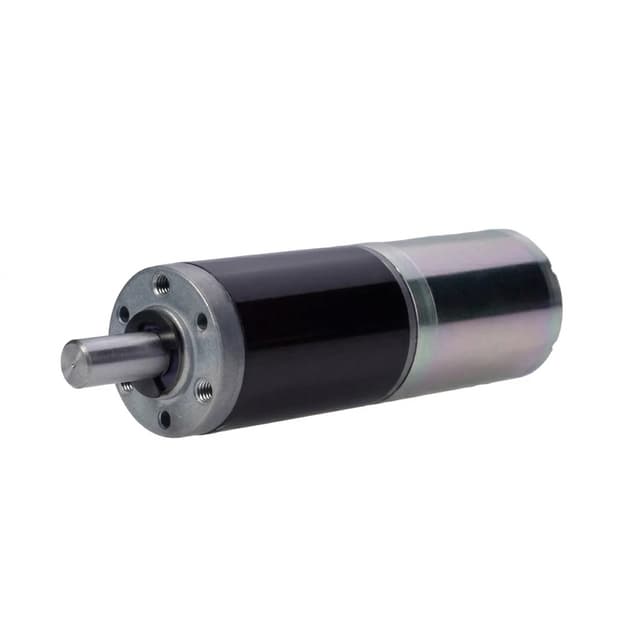

| 10mm Micro Brushless Gear Motor | 4 | 1,000-30,000 RPM | 0.5-2 W |

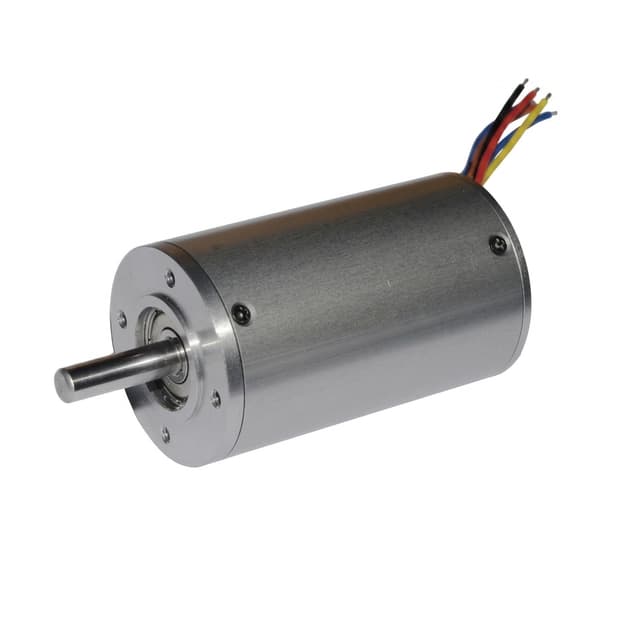

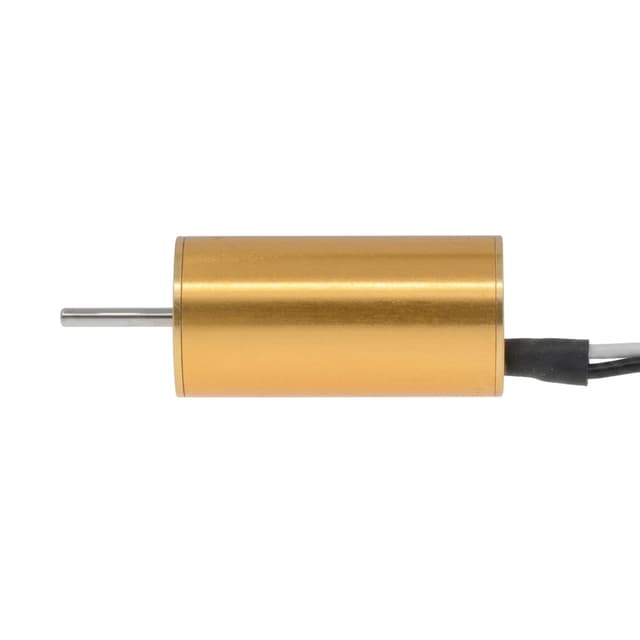

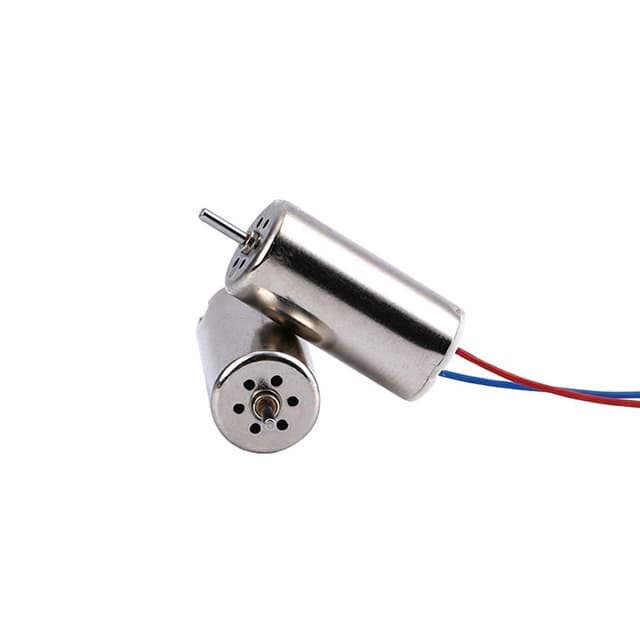

| 10mm Miniature Brushless Motor | 4 | 1,000-20,000 RPM | 1-5 W |

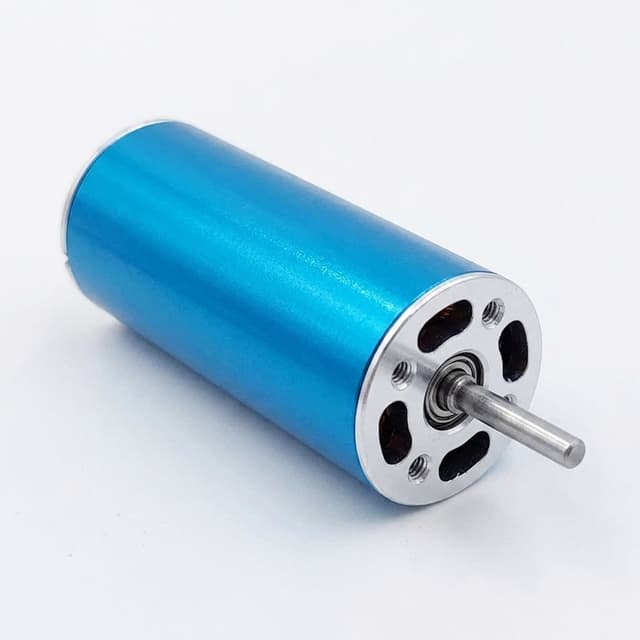

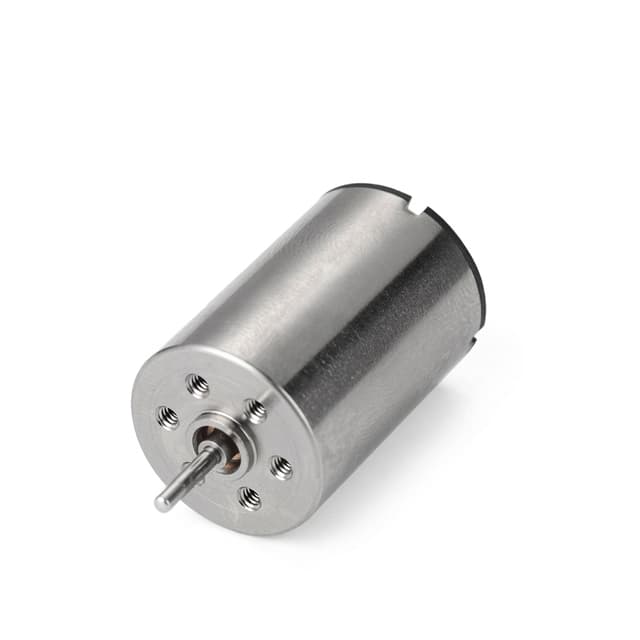

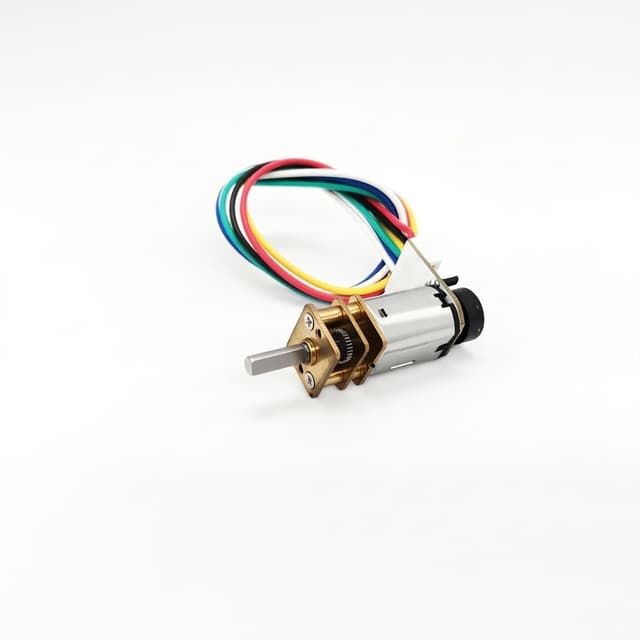

| 12mm Micro Bldc Motor | 4 | 1,000-15,000 RPM | 0.1-5 W |

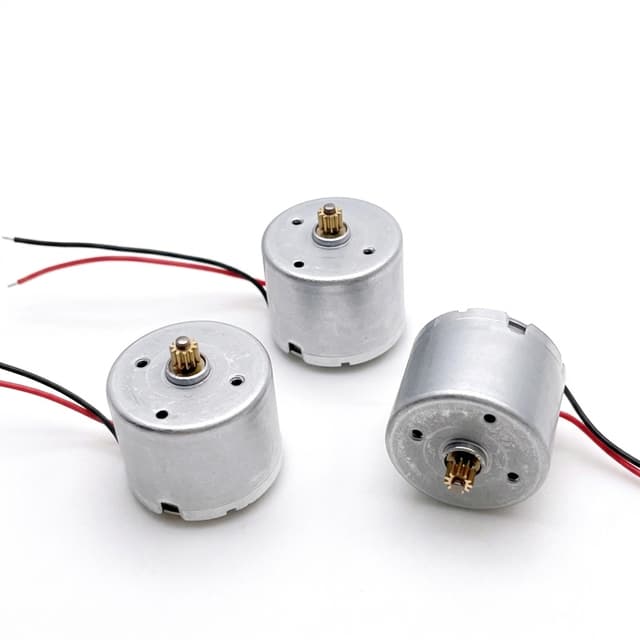

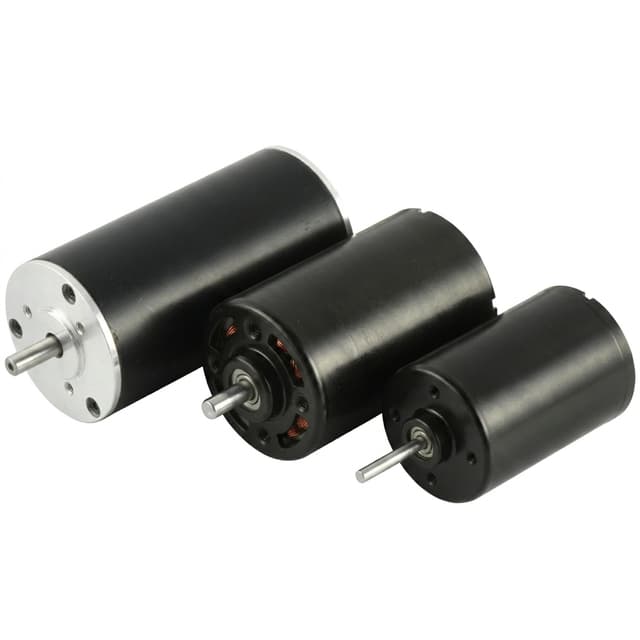

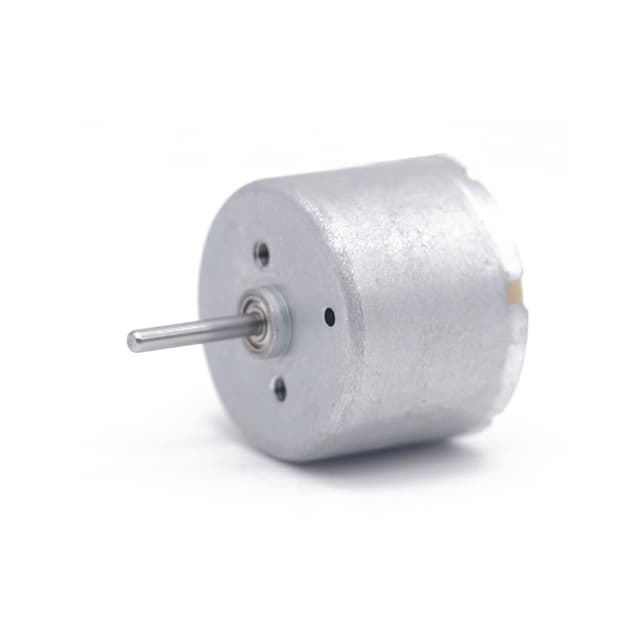

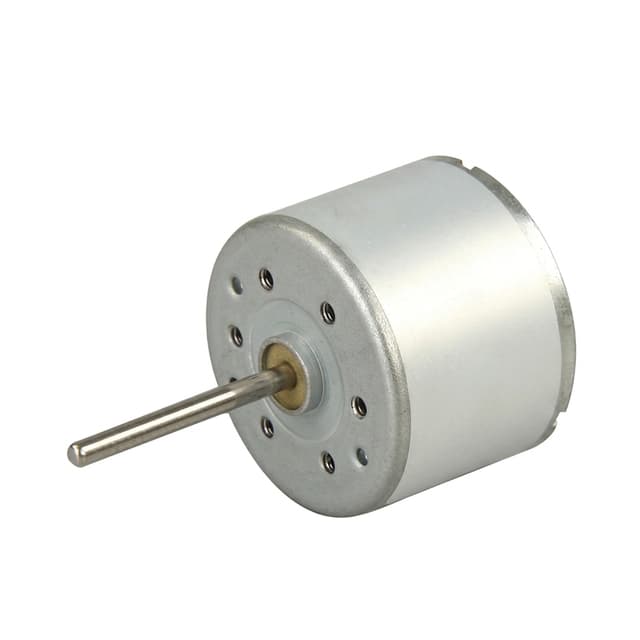

| 24mm Micro Bldc Motor | 4 | 3,000-15,000 RPM | 0.1-5 W |

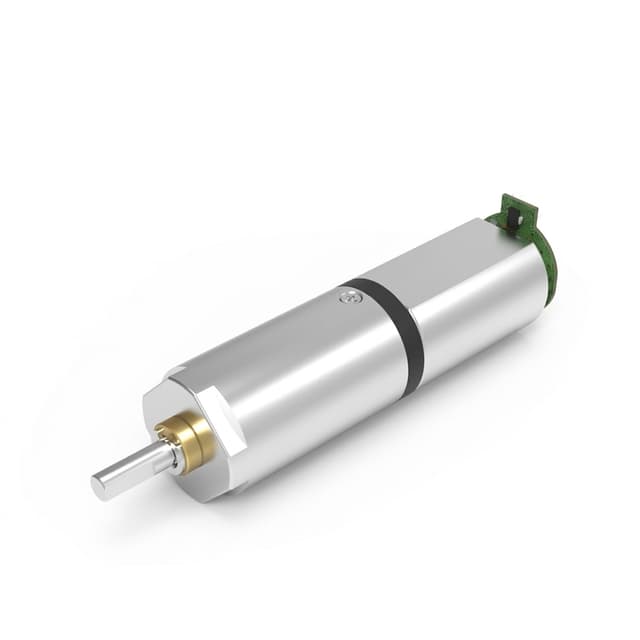

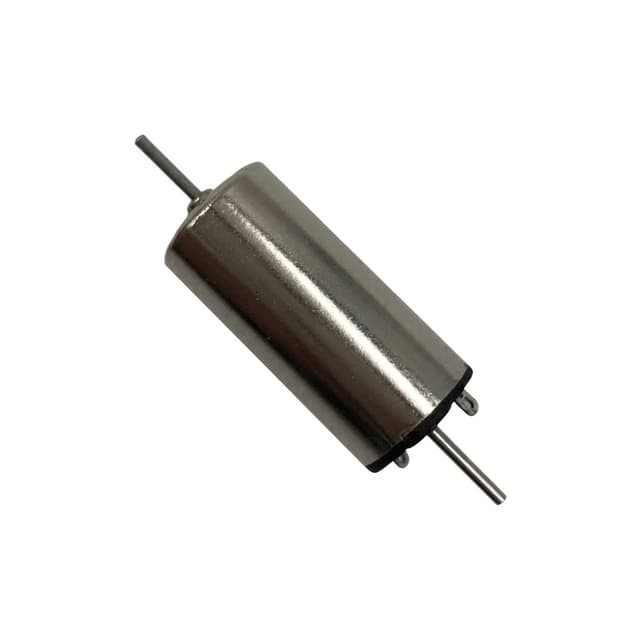

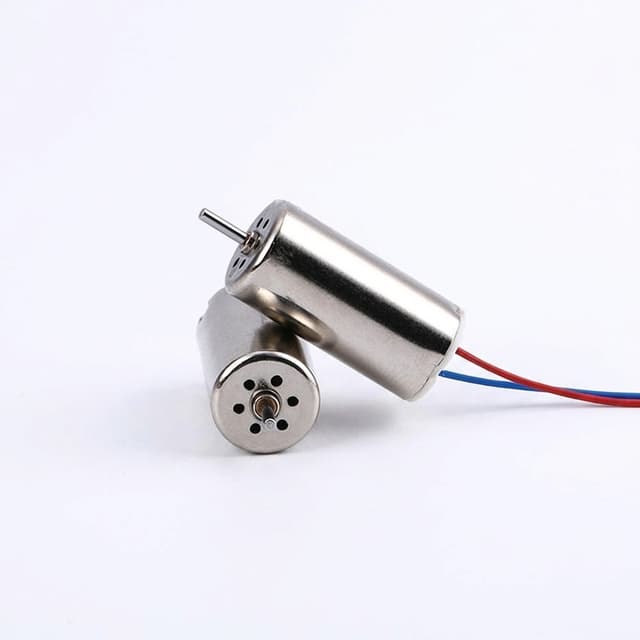

| 10mm Coreless Micro Bldc Motor | 3 | 5,000-30,000 RPM | 0.1-5 W |

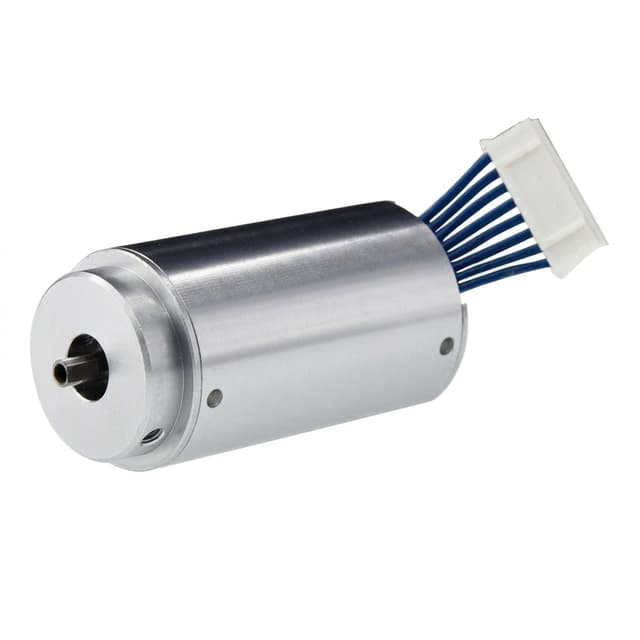

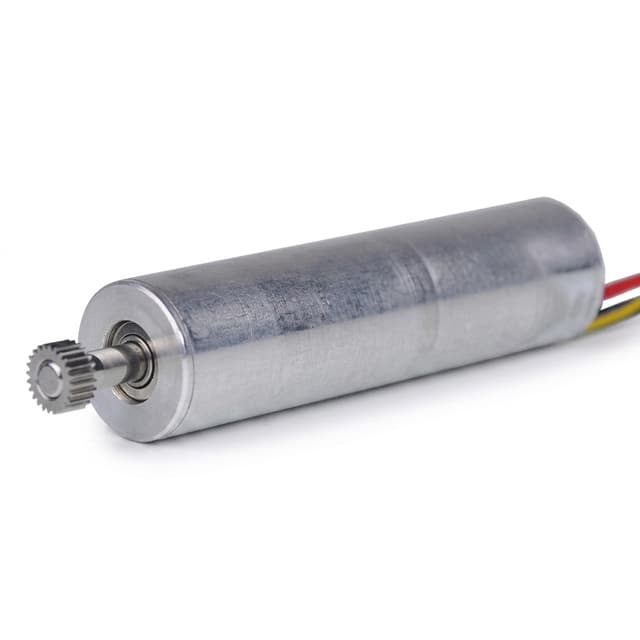

| 10mm Micro Brushless Dc Motor | 3 | 15,000-30,000 RPM | 0.1-5 W |

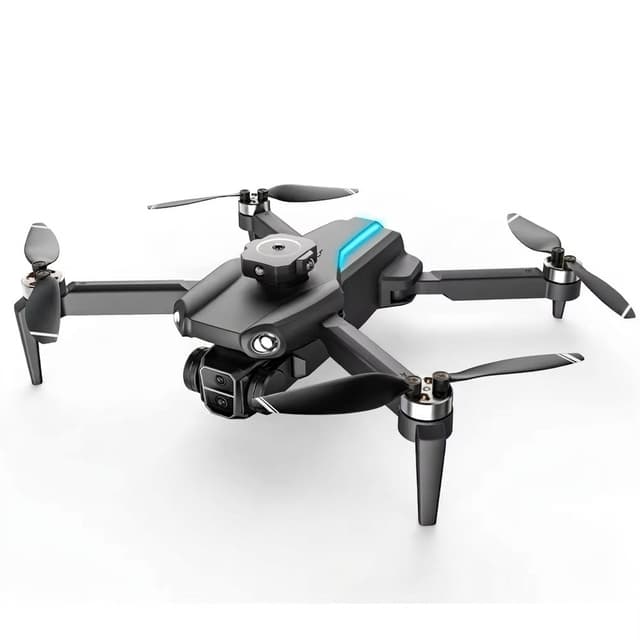

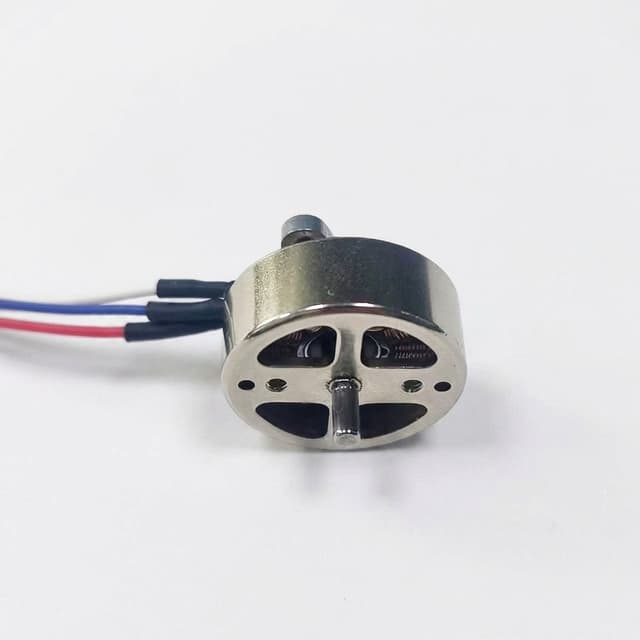

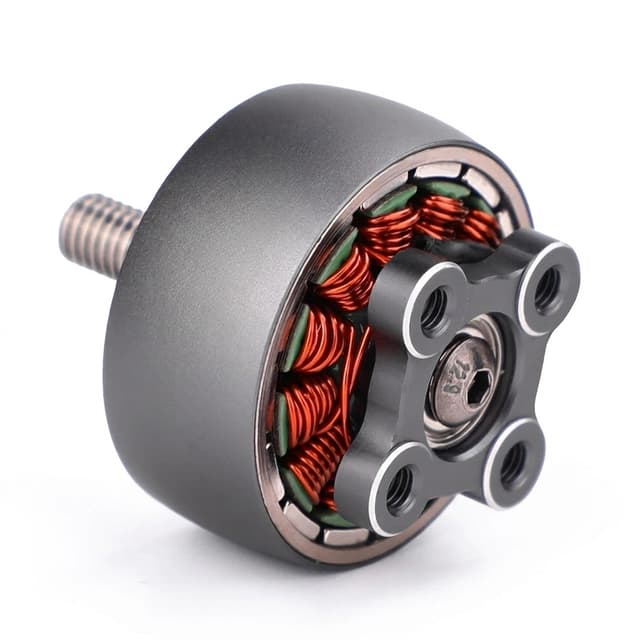

| Mini Drone Brushless Motor | 3 | 1,000-3,000 RPM | 2-2 W |

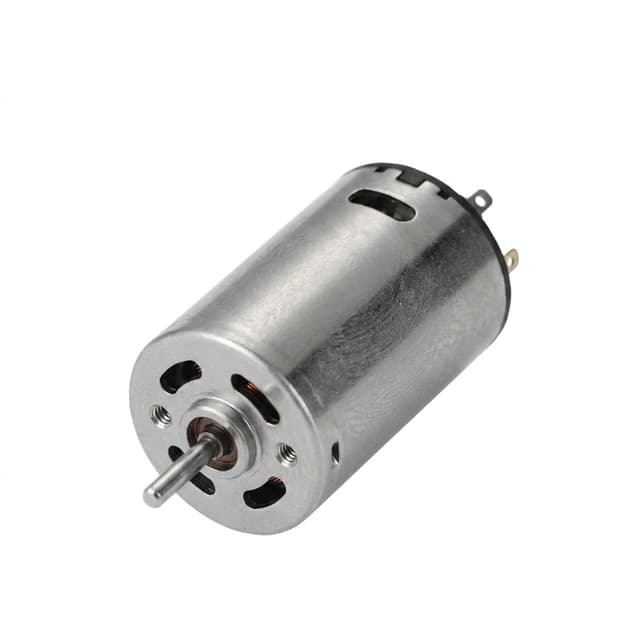

| 12mm Coreless Micro Bldc Motor | 2 | 3,000-20,000 RPM | 1-5 W |

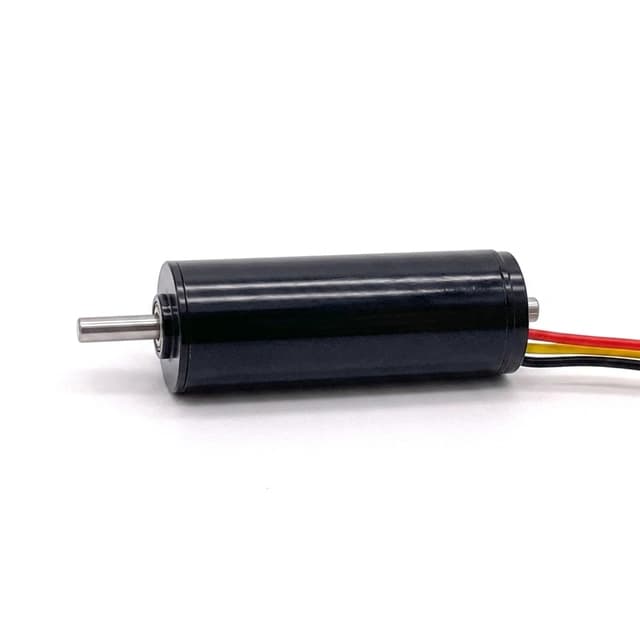

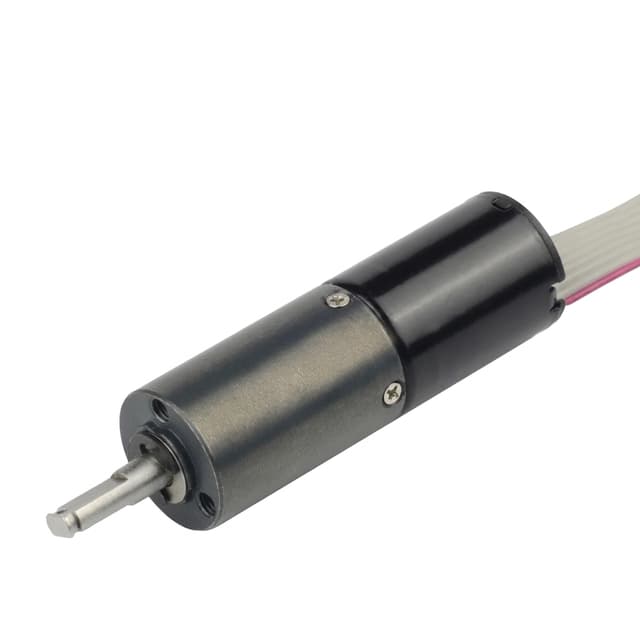

| 16mm Micro Bldc Motor | 2 | 10,000-20,000 RPM | 0.1-0.5 W |

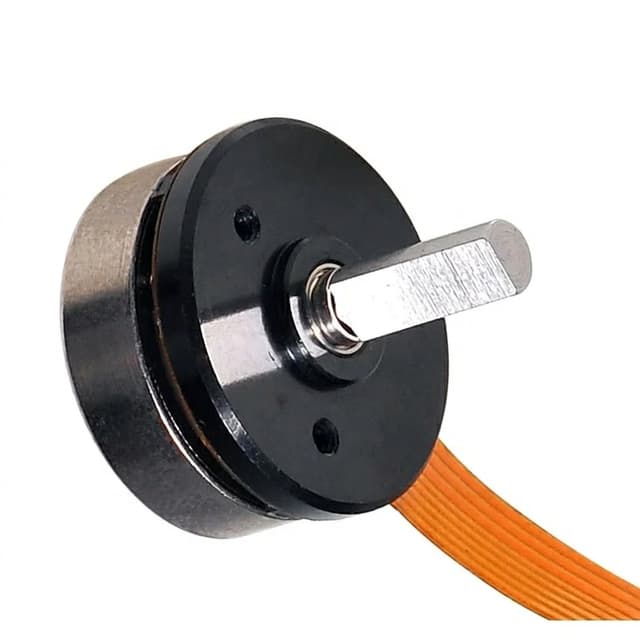

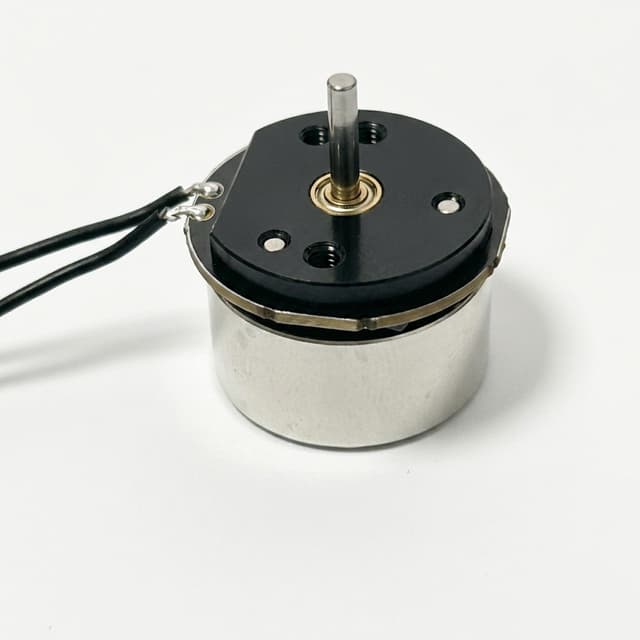

| 20mm Micro Bldc Motor | 2 | 5,000-5,000 RPM | 0.5-2 W |

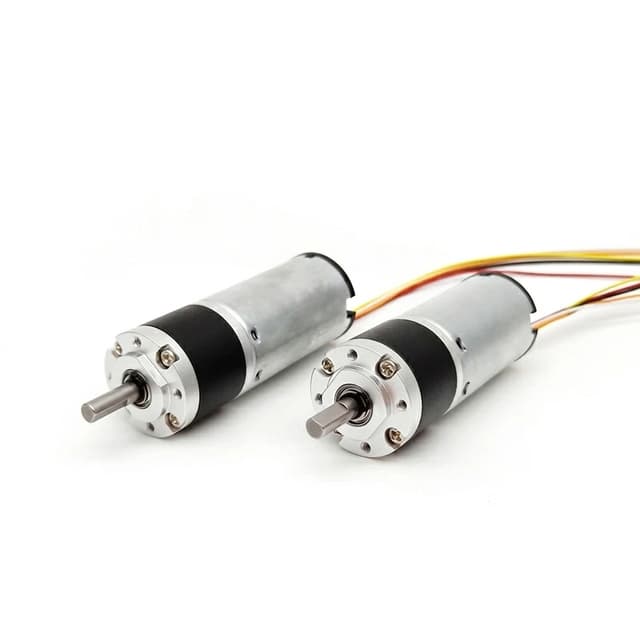

| 22mm Micro Bldc Motor | 2 | 15,000-20,000 RPM | 0.1-2 W |
